Flat Head Phillips Copper Wood Screws

$0.01

  • Flat head Phillips for easy fastening.
  • Made of durable, corrosion-resistant copper.
  • Multiple sizes for precise fit.
  • Ideal for woodworking projects.
Category:

Description

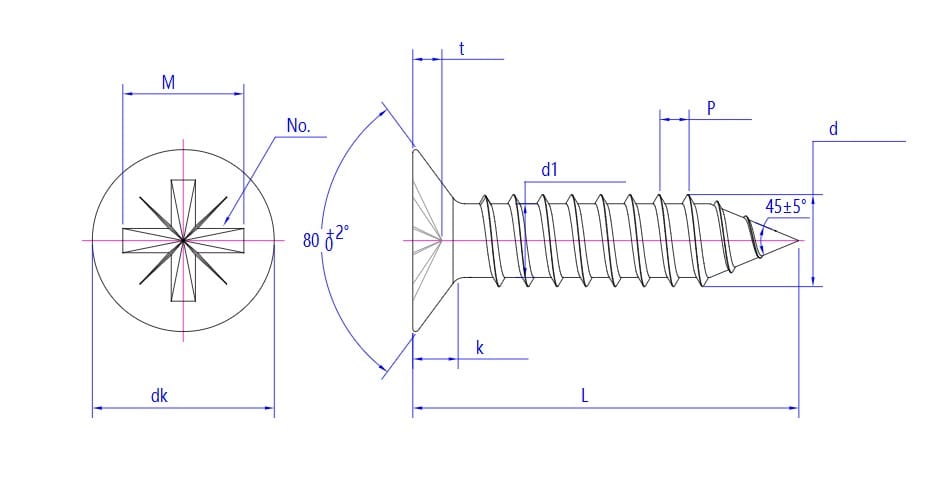

Technical drawing of Pozi Drive 30mm wood screws with labeled diameter, length, thread pitch, head angle, and specs.

(inch) #6 #8 #12 #14
P 18 15 11 10
dk max 0.212 0.237 0.312 0.362
dk min 0.191 0.215 0.285 0.333
k 0.052 0.052 0.069 0.08
M 0.122 0.158 0.192 0.198
t 0.081 0.088 0.122 0.127
No. 1 2 2 2
d max 0.141 0.168 0.221 0.254
d min 0.136 0.162 0.215 0.248
d1 max 0.102 0.123 0.162 0.185
d1 min 0.096 0.116 0.155 0.178



Our Copper Wood Screws are specially designed for woodworking applications, featuring a flat head Phillips design and high-quality copper material for durability and corrosion resistance.

Key Features:

  • Flat head Phillips drive for secure fastening and easy installation
  • Made of premium copper for enhanced corrosion resistance
  • Suitable for various woodwork projects requiring reliable fastening
  • Designed with specific dimensions to ensure precise fit and hold

Specifications:

  • Thread size options: #6, #8, #12, #14
  • Length options vary from approximately 10mm to 18mm depending on thread size
  • Head diameter (d max): from 0.136″ to 0.168″
  • Head diameter (d min): from 0.136″ to 0.162″
  • Shank diameter (dk max): from 0.191″ to 0.237″
  • Shank diameter (dk min): from 0.191″ to 0.215″
  • Other relevant dimensions detailed per thread size, ensuring compatibility and optimal performance

Our Copper Wood Screws combine reliable performance with corrosion resistance, making them an excellent choice for distributors seeking durable and high-quality fasteners for woodworking projects.
