Black Oxide Carbon Steel Truss Head Wood Screws

$0.01

Corrosion-resistant black oxide for a sleek look.
High-quality carbon steel for reliable strength.
Truss head design for enhanced load distribution.
Suitable for wood, metal, and general building projects.

Category: Wood Screws

Description
Additional information

Description

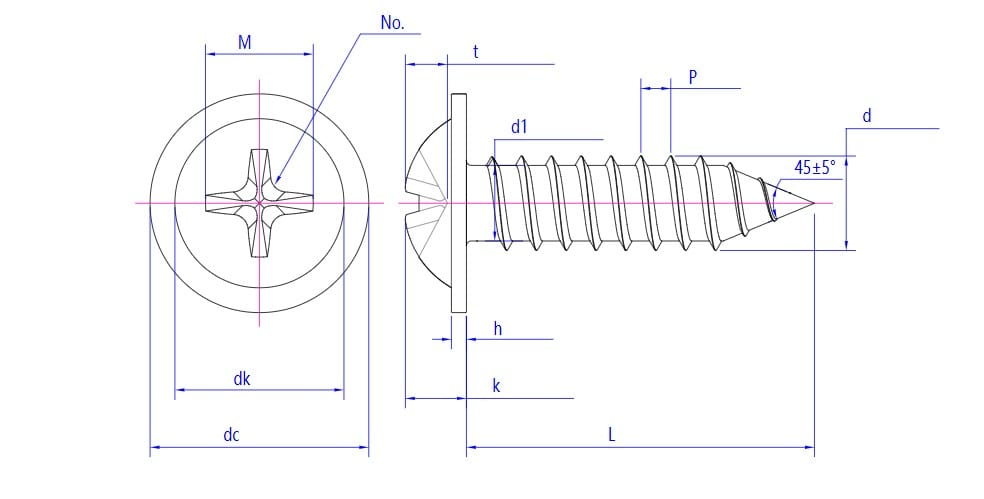

(inch)	#2	#3	#4	#5	#6	#7	#8	#10	#12	#14	#16	#18	#20	#24
P	32	28	24	20	18	16	15	12	11	10	10	9	9	9
dlk	0.136	0.156	0.177	0.198	0.218	0.238	0.259	0.3	0.341	0.382	0.423	0.661	0.505	0.587
dc max	0.202	0.232	0.261	0.291	0.321	0.35	0.38	0.439	0.498	0.558	0.617	0.676	0.736	0.854
dc min	0.186	0.215	0.243	0.272	0.301	0.33	0.358	0.416	0.473	0.531	0.588	0.646	0.703	0.818
k max	0.062	0.07	0.079	0.088	0.096	0.105	0.113	0.13	0.148	0.165	0.182	0.199	0.216	0.251
k min	0.05	0.058	0.067	0.075	0.084	0.092	0.101	0.118	0.134	0.151	0.168	0.185	0.202	0.236
h	0.03	0.03	0.03	0.04	0.04	0.04	0.04	0.04	0.04	0.05	0.05	0.06	0.06	0.06
M	0.099	0.107	0.116	0.139	0.147	0.15	0.161	0.177	0.228	0.241	0.261	0.279	0.325	0.347
No.	1	1	2	2	2	2	2	3	3	3	3	4	4	4
t max	0.046	0.056	0.065	0.054	0.061	0.065	0.076	0.093	0.094	0.105	0.126	0.144	0.145	0.17
t min	0.021	0.033	0.044	0.026	0.033	0.037	0.048	0.066	0.066	0.077	0.096	0.118	0.118	0.144
d max	0.088	0.101	0.114	0.13	0.141	0.158	0.168	0.194	0.221	0.254	0.28	0.306	0.333	0.39
d min	0.084	0.097	0.11	0.126	0.136	0.152	0.162	0.188	0.215	0.248	0.274	0.3	0.327	0.383
d1 max	0.061	0.076	0.083	0.095	0.102	0.114	0.123	0.133	0.162	0.185	0.197	0.217	0.234	0.291
d1 min	0.056	0.071	0.078	0.09	0.096	0.108	0.116	0.126	0.155	0.178	0.189	0.209	0.226	0.282

Black Oxide Carbon Steel Truss Head Wood Screws are durable fasteners designed for woodworking, construction, and sheet metal applications, providing reliable performance with a professional finish.

Key Features:

Truss Head design for maximum holding power and a flush finish
Black oxide coating for corrosion resistance and enhanced durability
Made from high-quality steel for strength and longevity
Suitable for building, wood, and sheet metal applications

Specifications:

Sizes ranging from #2 (approximately 28 mm length) to #24 (around 150 mm length)
Thread diameter varies from approximately 0.136 inches (for #2) to 0.587 inches (for #24)
Head diameter (dc max) ranges from approximately 0.202 inches to 0.854 inches, depending on size
Thread pitch (dlk) ranges from 0.136 mm to 0.661 mm
Shank length (h) varies from 0.03 inches to 0.06 inches
Material: Steel with black oxide finish
Applications include building, wood, and sheet metal projects

Distributors can offer these high-quality Black Oxide Carbon Steel Truss Head Wood Screws to meet the demands of construction and woodworking professionals seeking dependable, corrosion-resistant fasteners with a secure hold.
