Thread Cutting High Quality Wood Screws

$0.01

  • Variety of sizes (#1 to #40) for diverse applications.
  • Precise dimensions with tight tolerances for reliable fit.
  • Optimized thread design for smooth cutting and fastening.
  • High-quality materials ensure durability and wear resistance.
Category:

Description

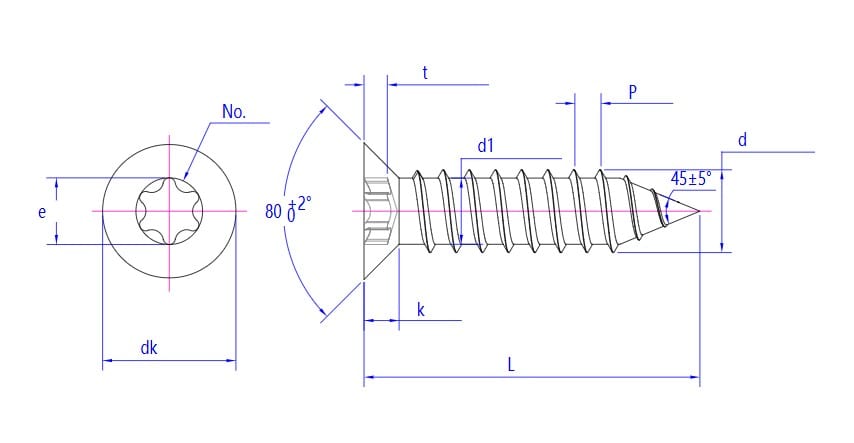

Technical drawing of high performance wood screws—no pre-drilling, with labeled cross-section and key dimensions.

(inch) #1 #2 #3 #4 #5 #6 #7 #8 #10 #12 #14 #16 #18 #20 #24
P 32 32 28 24 20 18 16 15 12 11 10 10 9 9 9
dk max 0.137 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412 0.462 0.512 0.561 0.611 0.711
dk min 0.12 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.38 0.427 0.475 0.522 0.569 0.664
k 0.043 0.051 0.059 0.067 0.075 0.083 0.091 0.1 0.116 0.132 0.148 0.164 0.18
0.196
0.228
e 0.058 0.069 0.094 0.094 0.111 0.111 0.132 0.132 0.155 0.178 0.2 0.221 0.0221 0.266
0.266
No. T5 T6 T8 T8 T10 T10 T15 T15 T20 T25 T27 T30 T30 T40 T40
t max 0.017 0.022 0.025 0.033 0.045 0.045 0.045 0.051 0.065 0.07 0.08 0.07 0.09 0.115 0.125
t min 0.012 0.017 0.02 0.028 0.035 0.035 0.035 0.04 0.05 0.055 0.065 0.055 0.075 0.095 0.105
d max 0.075 0.088 0.101 0.114 0.13 0.141 0.158 0.168 0.194 0.221 0.254 0.28 0.306 0.333 0.39
d min 0.072 0.084 0.097 0.114 0.126 0.136 0.152 0.162 0.188 0.215 0.248 0.274 0.3 0.327 0.383
d1 max 0.051 0.061 0.076 0.083 0.095 0.102 0.114 0.123 0.133 0.162 0.185 0.197 0.217 0.234 0.291
d1 min 0.048 0.056 0.071 0.078 0.09 0.096 0.108 0.116 0.126 0.155 0.178 0.189 0.209 0.226 0.282



Our high-quality wood screws are designed for precise and reliable fastening in woodworking projects. Engineered for durability and performance, these screws are ideal for professional distributors seeking premium fasteners for their customers.

Key Features:

  • Manufactured with optimal thread cutting capabilities for high-quality wood.
  • Designed to ensure secure fastening with minimal splitting of the wood.
  • Available in various sizes (#1 to #40) to suit diverse project requirements.
  • Precision-engineered dimensions to meet industrial standards.
  • Rated for maximum and minimum measurements (dk max/dk min, d max/d min) for consistent performance.
  • Enhanced thread design (T5 to T40) facilitates smooth cutting and fastening.
  • Various tolerances (t max/t min, d1 max/d1 min) for precise fit and reliability.

Specifications:

  • Sizes range from #1 to #40, each with specific parameters for P, dk, k, e, and thread dimensions.
  • Thread diameter (d max/d min) varies from approximately 0.075 to 0.39 inches depending on size.
  • Head dimensions (d1 max/d1 min) range from approximately 0.051 to 0.291 inches.
  • Tapping lengths (t max/t min) and other dimensions are optimized for high-quality performance across sizes.
  • Material and manufacturing standards ensure longevity and resistance to wear in demanding applications.

These high-quality wood screws offer superior threading, precision, and durability, making them an excellent choice for professional woodworking and construction needs. Distributors can rely on these fasteners to meet the highest standards of quality and performance.
