Carbon Steel Phillips Flat Head Wood Screws

Name: Zinc Plated Galvanized Carbon Steel Phillips Flat Head Wood Screws
SKU: 12046
Availability: InStock

Zinc Plated Galvanized Carbon Steel Phillips Flat Head Wood Screws

Durable zinc plating for enhanced corrosion resistance.
High-quality carbon steel for superior strength.
Ideal for wood, sheet metals, composite materials, and plastics.
Sharp point for easy penetration and fewer pre-drilling requirements.
Flat Phillips Drive Bugle Head for a clean finish and improved grip.

MOQ: 10000pcs

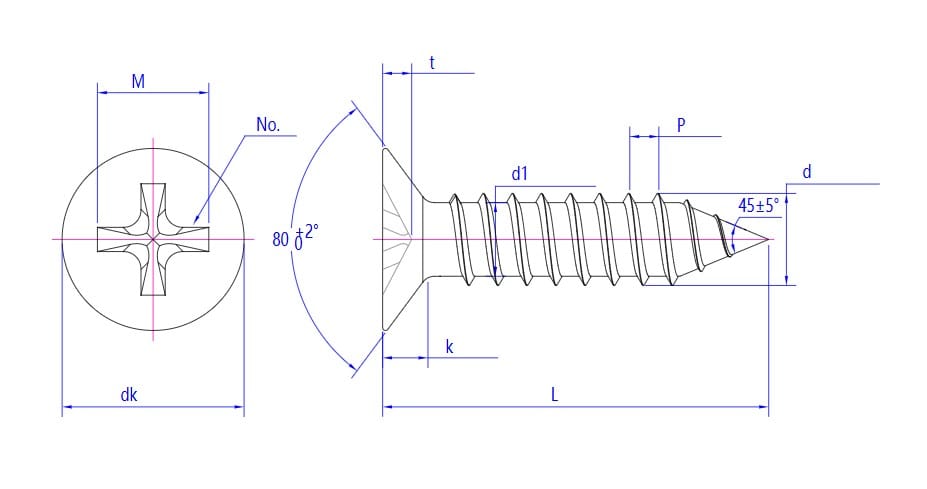

Technical drawing of a zinc-plated Phillips flat head wood screw with labeled size, pitch, diameter, and angle.

(inch)	#4	#5	#6	#8	#10	#12	#14
P	24	20	18	15	12	11	10
dk max	0.187	0.212	0.237	0.262	0.312	0.362	0.412
dk min	0.167	0.191	0.215	0.238	0.285	0.333	0.38
k	0.052	0.060	0.068	0.069	0.085	0.101	0.112
M	0.100	0.122	0.148	0.176	0.182	0.198	0.262
t	0.060	0.081	0.074	0.102	0.110	0.124	0.144
No.	1	1	2	2	2	2	3
d max	0.114	0.130	0.141	0.168	0.194	0.221	0.254
d min	0.110	0.126	0.136	0.162	0.188	0.215	0.248
d1 max	0.083	0.095	0.102	0.123	0.133	0.162	0.185
d1 min	0.078	0.090	0.096	0.116	0.126	0.155	0.178

Discover our Zinc Plated Galvanized Carbon Steel Phillips Flat Head Wood Screws, designed for durable fastening in various materials. Perfect for distributors seeking reliable and versatile screws for their product offerings.

Key Features:

Finish: Zinc Plated for corrosion resistance
Material: Made from durable steel
Application: Suitable for sheet metals, composite materials, timber, and plastic, including wood
Point Style: Sharp point for easy penetration
Head Type: Flat Phillips Drive with a bugle head for flush finish
Compatibility: Various sizes ranging from #4 to #14 for versatile applications

Specifications:

Screw Diameters (inch): #4 (0.112), #5 (0.130), #6 (0.141), #8 (0.168), #10 (0.194), #12 (0.221), #14 (0.254)
Maximum Body Diameter (dk max): 0.187–0.412 inch depending on size
Minimum Body Diameter (dk min): 0.167–0.38 inch depending on size
Thread Pitch (k): Ranges from 0.052 to 0.112 inches
Thread Length (M): Varies from 0.100 to 0.262 inches based on size
Thread Thickness (t): From 0.060 to 0.144 inches, depending on size
Number of Threads (No.): 1 to 3, depending on size
Max Diameter (d max): 0.114–0.254 inches
Min Diameter (d min): 0.110–0.248 inches
Thread Lengths (d1 max/min): Ranges from 0.083 to 0.185 inches depending on size
Packaging options available for different sizes and quantities

Our Zinc Plated Galvanized Carbon Steel Phillips Flat Head Wood Screws are an excellent choice for distributors requiring high-quality, corrosion-resistant fasteners suitable for multiple materials and applications. Their durable construction and versatile design ensure dependable performance in all your projects.

Finish	ZINC PLATED
Material	Steel
Application	sheet metals, composite materials, timber, and plastic. wood
Point Style	Sharp Point
Head type	Flat Phillips Drive Bugle Head
