Hexagon Head Wood Lag Screws

$0.01

  • 1. Hexagon head design allows easy wrench tightening and strong grip.
  • Suitable for various woodworking and fastening tasks.
  • Available in multiple sizes for versatility.
Category:

Description

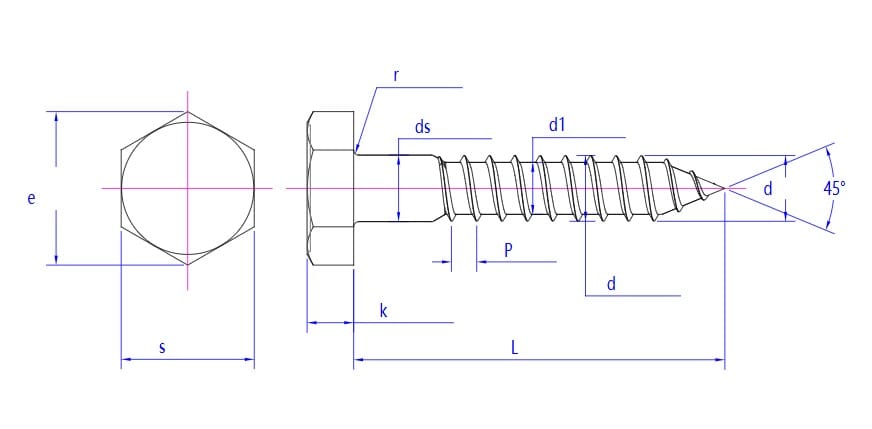

Technical drawing of a Wood Hexagon Flat Head Screw with labeled diameter, thread pitch, head size, and length.

(inch) #10 1/4 5/16 3/8 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4
P 11 10 9 7 6 5 4.5 4 3.5 3.25 3.25
d max 0.199 0.26 0.324 0.388 0.515 0.642 0.768 0.895 1.022 1.149 1.277
d min 0.178 0.237 0.298 0.36 0.482 0.605 0.729 0.85 0.976 1.1 1.223
d1 max 0.122 0.177 0.228 0.268 0.374 0.473 0.582 0.686 0.784 0.892 1.017
d1 min 0.107 0.16 0.21 0.25 0.354 0.453 0.562 0.665 0.76 0.867 0.987
ds max 0.199 0.26 0.324 0.388 0.515 0.642 0.768 0.895 1.022 1.149 1.277
ds min 0.178 0.237 0.298 0.36 0.482 0.605 0.729 0.85 0.976 1.1 1.223
s max 0.281 0.438 0.5 0.562 0.75 0.938 1.125 1.312 1.5 1.688 1.875
s min 0.271 0.425 0.484 0.544 0.725 0.906 1.088 1.269 1.45 1.631 1.812
e max 0.323 0.505 0.577 0.65 0.866 1.083 1.299 1.516 1.732 1.949 2.165
e min 0.309 0.484 0.552 0.62 0.826 1.033 1.24 1.447 1.653 1.859 2.066
k max 0.14 0.188 0.235 0.268 0.364 0.444 0.524 0.604 0.7 0.78 0.876
k min 0.11 0.15 0.195 0.226 0.302 0.378 0.455 0.53 0.591 0.658 0.749
r max 0.03 0.03 0.03 0.03 0.06 0.06 0.06 0.06 0.06 0.09 0.09
r min 0.01 0.01 0.01 0.01 0.02 0.02 0.02 0.03 0.03 0.03 0.03



Hexagon Head Wood Lag Screws are engineered for secure and reliable fastening in woodworking applications. Designed with precision and durability in mind, these screws are ideal for professional and industrial use.

Key Features:

  • Hexagon head for easy wrench tightening and extra grip
  • Suitable for various wood joining and fastening tasks
  • Available in multiple sizes for versatile application
  • Designed to ensure strong hold and minimal wood damage
  • Made from high-quality materials for corrosion resistance and longevity

Specifications:

  • Diameter sizes range from #10 to 1-1/4 inches
  • Thread pitch varies (e.g., 1/4, 5/16, 3/8, etc.)
  • P (pitch): from 3.25 to 11 based on screw size
  • Max and min dimensions for diameter (d max, d min), shank length (d1 max, d1 min), and other critical features are specified per size
  • Head dimensions and thread lengths are tailored for optimal performance
  • Rounding values for radius and key measurements provided for precise application

Hexagon Head Wood Lag Screws offer dependable fastening solutions with a range of sizes and detailed specifications, ensuring they meet the demands of professional woodworking and construction projects. Suitable for distributors seeking high-quality, durable fasteners for various wood applications.
