Two stainless steel flat head self-tapping screws are elegantly placed on a white surface.

Four stainless steel countersunk flat head screws lie scattered on a white background.

Close-up of three stainless steel countersunk screws arranged together on a white background.

Self Tapping Countersunk Flat Head Stainless Steel Wood Screw

$0.01

High-quality stainless steel for superior corrosion resistance.
Plain finish for a discreet and refined look.
Pan head design ensures a flush fit and clean appearance.
Sharp threads eliminate the need for pre-drilling, enabling easy installation.
Ideal for various building applications involving wood.

Category: Self Tapping Screws

Description
Additional information

Description

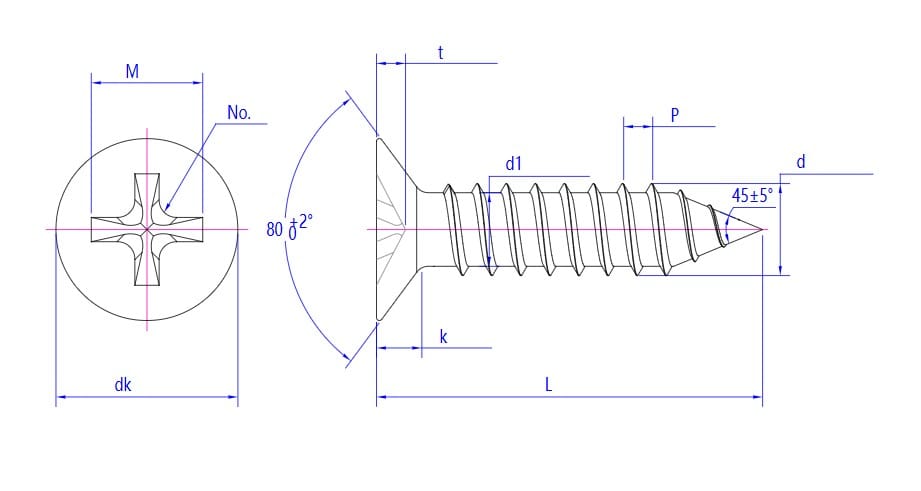

(inch)	#0	#1	#2	#3	#4	#5	#6	#7	#8	#10	#12	#14	#16	#18	#20	#24
P	40	32	32	28	24	20	18	16	15	12	11	10	10	9	9	9
dk max	0.112	0.137	0.162	0.187	0.212	0.237	0.262	0.287	0.312	0.362	0.412	0.462	0.512	0.561	0.611	0.711
dk min	0.096	0.12	0.144	0.167	0.191	0.215	0.238	0.262	0.285	0.333	0.38	0.427	0.475	0.522	0.569	0.664
k	0.035	0.043	0.051	0.059	0.067	0.075	0.083	0.091	0.1	0.116	0.132	0.148	0.164	0.18	0.196	0.228
M	0.062	0.07	0.096	0.1	0.122	0.148	0.168	0.176	0.182	0.198	0.262	0.276	0.296	0.358	0.372	0.386
t	0.035	0.043	0.055	0.06	0.081	0.074	0.094	0.102	0.11	0.124	0.144	0.16	0.18	0.205	0.219	0.234
No.	0	0	0	1	1	2	2	2	2	3	3	3	4	4	4	4
d max	0.06	0.075	0.088	0.101	0.114	0.13	0.141	0.158	0.168	0.194	0.221	0.254	0.28	0.306	0.333	0.39
d min	0.057	0.072	0.084	0.097	0.11	0.126	0.136	0.152	0.162	0.188	0.215	0.248	0.274	0.3	0.327	0.383
d1 max	0.042	0.051	0.061	0.076	0.083	0.095	0.102	0.114	0.123	0.133	0.162	0.185	0.197	0.217	0.234	0.291
d1 min	0.039	0.048	0.056	0.071	0.078	0.09	0.096	0.108	0.116	0.126	0.155	0.178	0.189	0.209	0.226	0.282

This Stainless Steel Wood Screw is a self-tapping, countersunk flat head fastener designed for durable and reliable wood applications. Crafted from corrosion-resistant stainless steel, it ensures long-lasting performance in various building and woodworking projects. Its design offers easy installation and a professional finish.

Key Features:

Made from high-quality stainless steel for excellent corrosion resistance and durability
Self-tapping feature allows installation directly into wood without pre-drilling
Countersunk flat head ensures a flush finish for aesthetic and functional purposes
Available in sizes from 0.112 inch to 0.711 inch in diameter, suitable for various project requirements
Thread sizes and lengths are optimized for different applications, with specific data at each size
Plain finish provides versatility for different aesthetic and functional needs
Designed with a pan head to maximize holding power and minimize protrusion in wood applications
Suitable for building, carpentry, furniture assembly, and general woodworking

Specifications:

Head type: Pan Head (countersunk flat head)
Material: Stainless Steel
Finish: Plain
Applicable in: Building and Woodworking projects
Diameter options: from #0 (0.112 inch) to #24 (0.711 inch)
Thread size (k): ranges from 0.035 to 0.228 depending on diameter
Drive type: Self-tapping for easy installation
Lengths and other parameters (d max, d min, etc.) are tailored per size for precise application needs

Ideal for distributors, this stainless steel self-tapping wood screw combines high-quality materials, versatile specifications, and reliable performance. Its self-tapping and flush-head features make it suitable for a wide range of building and woodwork projects, ensuring easy installation and long-term stability.
