Drive Full Thread Wood Square Tip Screws

$0.01

  • Fully threaded for enhanced grip and stability
  • Square tip for easy driving and reduced slipping
  • Suitable for strong, secure fastening in wood
  • Available in multiple sizes and specifications for various projects

Category:

Description

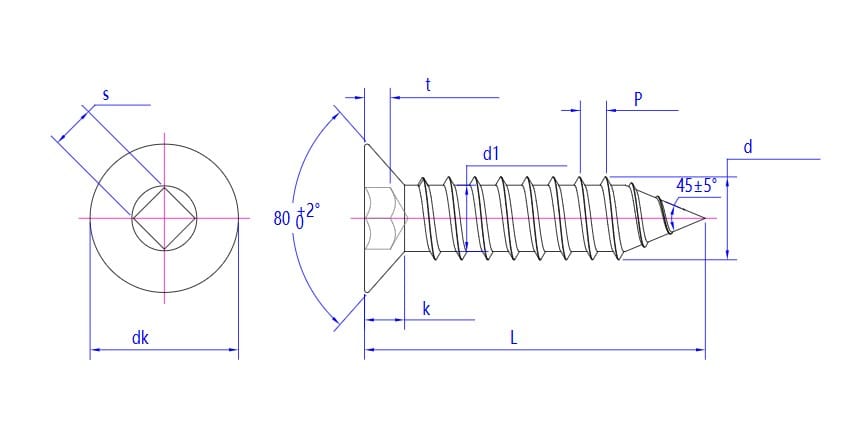

Technical drawing of a Square Drive A4 Stainless Steel Wood Screw with labeled front and side views.

(inch) #2 #3 #4 #5 #6 #7 #8 #10 #12 #14 #16 #18 #20 #24
P 32 28 24 20 18 16 15 12 11 10 10 9 9 9
dk max 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412 0.462 0.512 0.561 0.611 0.711
dk min 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.38 0.427 0.475 0.522 0.569 0.664
k 0.051 0.059 0.067 0.075 0.083 0.091 0.1 0.116 0.132 0.148 0.164 0.18 0.196 0.228
s 0.05 0.07 0.07 0.091 0.091 0.091 0.091 0.112 0.133 0.133 0.133 0.191 0.191 0.191
t max 0.033 0.038 0.038 0.055 0.065 0.065 0.063 0.075 0.095 0.095 0.095 0.1 0.1 0.1
t min 0.028 0.028 0.028 0.04 0.04 0.05 0.048 0.06 0.08 0.08 0.08 0.085 0.085 0.085
d max 0.088 0.101 0.114 0.13 0.141 0.158 0.168 0.194 0.221 0.254 0.28 0.306 0.333 0.39
d min 0.084 0.097 0.114 0.126 0.136 0.152 0.162 0.188 0.215 0.248 0.274 0.327 0.383 0.383
d1 max 0.061 0.076 0.083 0.095 0.102 0.114 0.123 0.133 0.162 0.185 0.197 0.217 0.234 0.291
d1 min 0.056 0.071 0.078 0.09 0.096 0.108 0.116 0.126 0.155 0.178 0.189 0.209 0.226 0.282



Drive Full Thread Wood Square Tip Screws are designed for secure and reliable fastening in woodworking applications, combining quality craftsmanship with precise dimensions suitable for professional distributors.

Key Features:

  • Fully threaded for enhanced grip and stability
  • Square tip for easy driving and reduced slipping
  • Suitable for wood materials requiring strong holding power
  • Available in various sizes to accommodate multiple project needs

Specifications:

  • Diameter sizes range from #2 to #24 inches
  • Thread pitch (P) varies from 28 to 32 threads per inch
  • Maximum and minimum dry knot (dk) values range from 0.144 to 0.711 inches
  • Head sizes (k) vary from 0.051 to 0.228 inches
  • Shelf life and compatibility confirmed through detailed dimensional data such as s, t, d, and d1 measurements
  • Designed to meet industry standards with specific minimum and maximum tolerances for durability and performance

Drive Full Thread Wood Square Tip Screws offer precise dimensions and reliable performance for professional woodworking projects, making them an ideal choice for distributors seeking quality fasteners for varied applications.
