M6 Hex Nut with Zinc Plated

$0.01

  • Suitable for M6 threaded applications
  • Zinc plated for corrosion resistance
  • Precise dimensions ensure consistent assembly
  • Robust design for secure, durable connections
  • Easy installation and removal, saving time
Categories: ,

Description

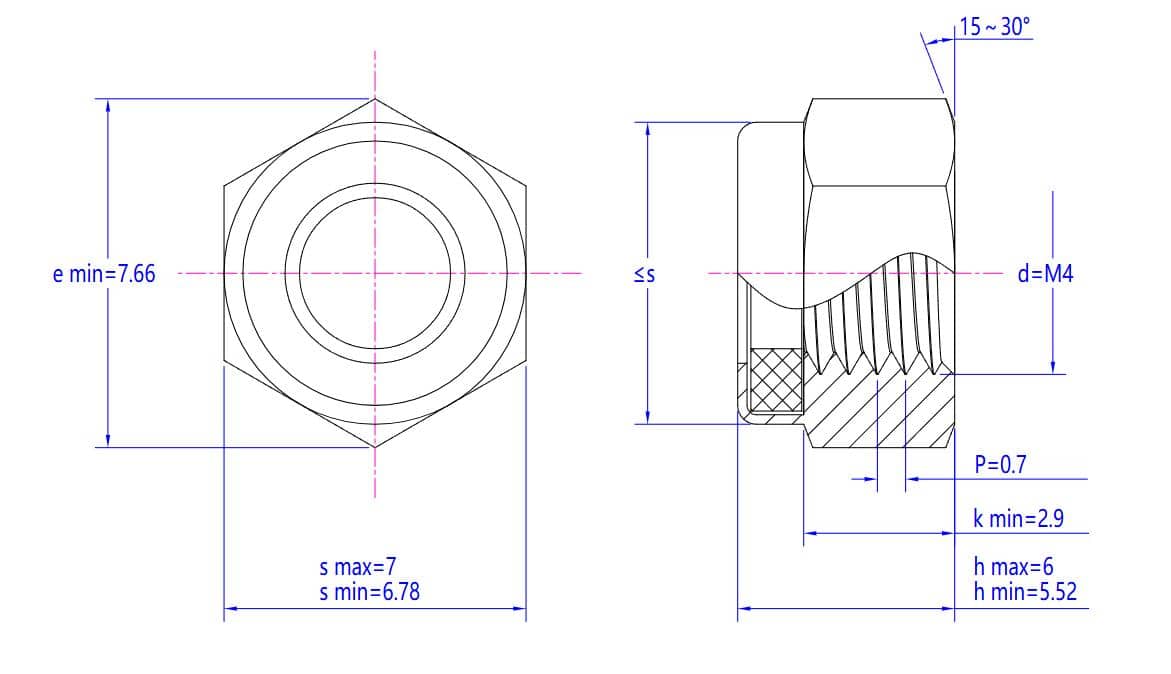

M6 Hex Nut, zinc plated, technical drawing with detailed dimensions, thread specs, width, height, and chamfer.

(mm) M3 M4 M5 M6 M8 M10 M12 M14 M16
P 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2
e min 6.01 7.66 8.79 11.05 14.38 17.77 20.03 23.36 26.75
h max 4.5 6 6.8 8 9.5 11.9 14.9 17 19.1
h min 4.02 5.52 6.22 7.42 8.92 11.2 14.2 15.9 17.8
k min 2.15 2.9 4.4 4.9 6.44 8.04 10.37 12.1 14.1
s max 5.5 7 8 10 13 16 18 21 24
s min 5.32 6.78 7.78 9.78 12.73 15.73 17.73 20.67 23.67



(mm) P e min h max h min k min s max s min
M6 1 11.05 8 7.42 4.9 10 9.78



This M6 Hex Nut with Zinc Plating is designed for reliable fastening in various applications, ensuring durability and corrosion resistance. Its robust construction makes it suitable for heavy-duty use, providing peace of mind in demanding environments.

Key Features:

  • Suitable for M6 threaded applications
  • Zinc plated finish for enhanced corrosion protection
  • Precise dimensions for consistent assembly
  • Meets industry standards for quality and performance
  • Robust design for secure and durable connections
  • The design has been carefully engineered to facilitate quick installation and removal, saving time during assembly and disassembly processes.

Specifications:

  • Pitch (P): 1 mm
  • Minimum edge distance (e min): 11.05 mm
  • Maximum height (h max): 8 mm
  • Minimum height (h min): 7.42 mm
  • Minimum core diameter (k min): 4.9 mm
  • Maximum shoulder diameter (s max): 10 mm
  • Minimum shoulder diameter (s min): 9.78 mm

The M6 Hex Nut with Zinc Plating offers dependable performance with precise dimensions and corrosion resistance, making it an ideal choice for distributors seeking quality fastening solutions.
