Stainless Steel PEM Clinch Nut
$0.01
- Corrosion-resistant and durable stainless steel
- Compatible with different sheet metals
- Vibration-resistant threads
- Easy installation with standard holes
- Range of sizes M3 to M8
Category: Nuts
Description

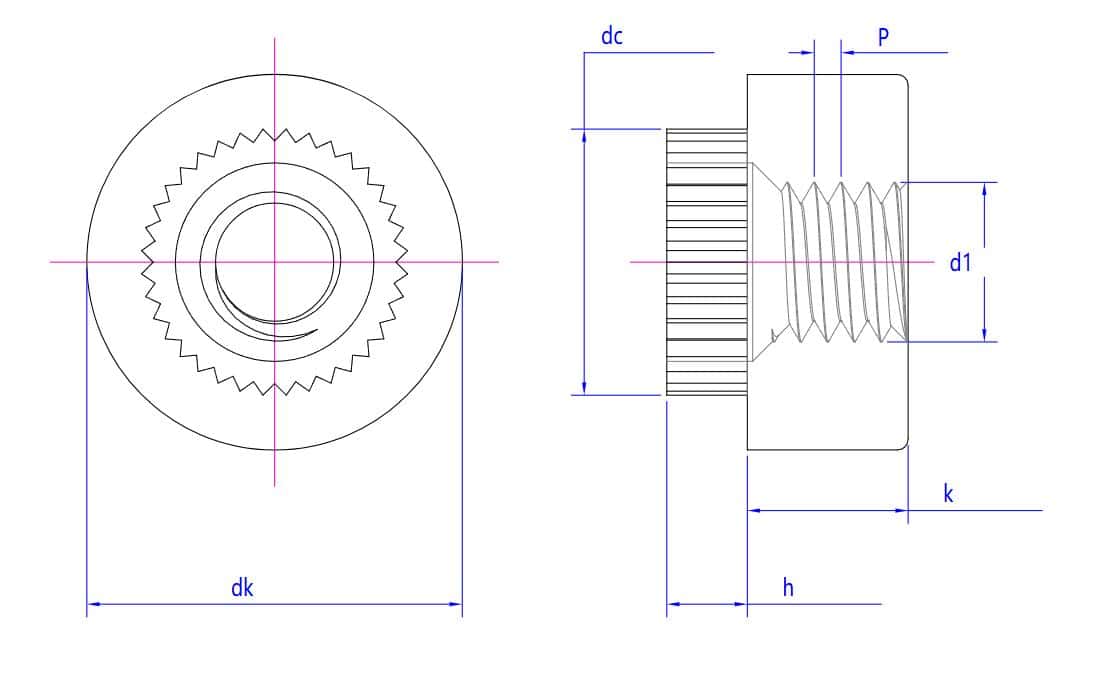

(mm) | M3-1 | M3-1.2 | M3-1.5 | M3-2 | M4-1.2 | M4-1.5 | M4-2 | M5-1.5 | M5-2 | M5-2.5 | M6-1.5 | M6-2 | M6-2.5 | M8-2 | M8-2.5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P | 0.5 | 0.5 | 0.5 | 0.5 | 0.7 | 0.7 | 0.7 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 |
dk max | 7.15 | 7.15 | 7.15 | 8.15 | 8.15 | 8.15 | 10.1 | 10.15 | 11.15 | 11.15 | 12.85 | 10.85 | 10.85 | 12.85 | 12.85 |
dk min | 6.85 | 6.85 | 6.85 | 7.85 | 7.85 | 7.85 | 9.85 | 9.85 | 9.85 | 9.85 | 10.85 | 10.85 | 10.85 | 10.85 | 10.85 |
dc max | 4.98 | 4.98 | 4.98 | 5.98 | 5.98 | 5.98 | 7.98 | 7.98 | 7.98 | 7.98 | 8.98 | 8.98 | 8.98 | 10.98 | 10.98 |
dc min | 4.85 | 4.85 | 4.85 | 5.85 | 5.85 | 5.85 | 7.85 | 7.85 | 7.85 | 7.85 | 8.85 | 8.85 | 8.85 | 10.85 | 10.85 |
h max | 1.15 | 1.35 | 1.65 | 1.95 | 1.15 | 1.45 | 1.95 | 2.45 | 2.65 | 2.65 | 3.45 | 3.45 | 3.45 | 2.65 | 2.65 |
h min | 0.95 | 1.15 | 1.45 | 1.95 | 1.15 | 1.45 | 1.95 | 2.45 | 2.65 | 2.65 | 2.65 | 2.45 | 2.45 | 2.45 | 2.45 |
k max | 3.13 | 3.13 | 3.13 | 4.13 | 4.13 | 4.13 | 5.13 | 5.13 | 5.13 | 5.13 | 6.13 | 6.13 | 6.13 | 6.13 | 6.13 |
k min | 2.87 | 2.87 | 2.87 | 3.87 | 3.87 | 3.87 | 4.87 | 4.87 | 4.87 | 4.87 | 5.87 | 5.87 | 5.87 | 5.87 | 5.87 |
d1 | M3 | M3 | M3 | M4 | M4 | M4 | M5 | M5 | M5 | M5 | M6 | M6 | M6 | M8 | M8 |
The Stainless Steel PEM Clinch Nut is a high-quality fastener designed for secure and durable joining applications in stainless steel components. Perfect for distributors seeking reliable fastening solutions, this clinch nut offers excellent corrosion resistance and easy installation.
Key Features:
- Made from stainless steel for corrosion resistance and durability
- Suitable for various sheet metal thicknesses and materials
- Provides strong, vibration-resistant threaded connections
- Easy to install with standardized hole sizes
- Compatible with a range of sizes from M3 to M8
Specifications:
- Thread sizes: M3, M4, M5, M6, M8
- Pitch (P): 0.5 mm (M3), 0.7 mm (M4, M5, M6), 1 mm (M8)
- Maximum diameter (dk max): 7.15 mm to 12.85 mm depending on size
- Minimum diameter (dk min): 6.85 mm to 10.85 mm depending on size
- Maximum collar diameter (dc max): 4.85 mm to 10.98 mm
- Minimum collar diameter (dc min): 4.85 mm to 10.85 mm
- Max head height (h max): 1.15 mm to 3.45 mm depending on size
- Min head height (h min): 0.95 mm to 2.65 mm depending on size
- Max key diameter (k max): 3.13 mm to 6.13 mm
- Min key diameter (k min): 2.87 mm to 5.87 mm
The Stainless Steel PEM Clinch Nut is ideal for distributors seeking a reliable, corrosion-resistant fastening solution. Its range of sizes and specifications ensure compatibility with various applications, providing secure and long-lasting mechanical joints in stainless steel assemblies.
