Hex Washer Head Yellow Zinc Bolt

$0.01

Secure hex washer head for reliable fastening
Yellow zinc coating provides corrosion resistance and an attractive finish
Available in various metric sizes for different needs
Ideal for industrial and construction applications

Category: Bolts

Description

Description

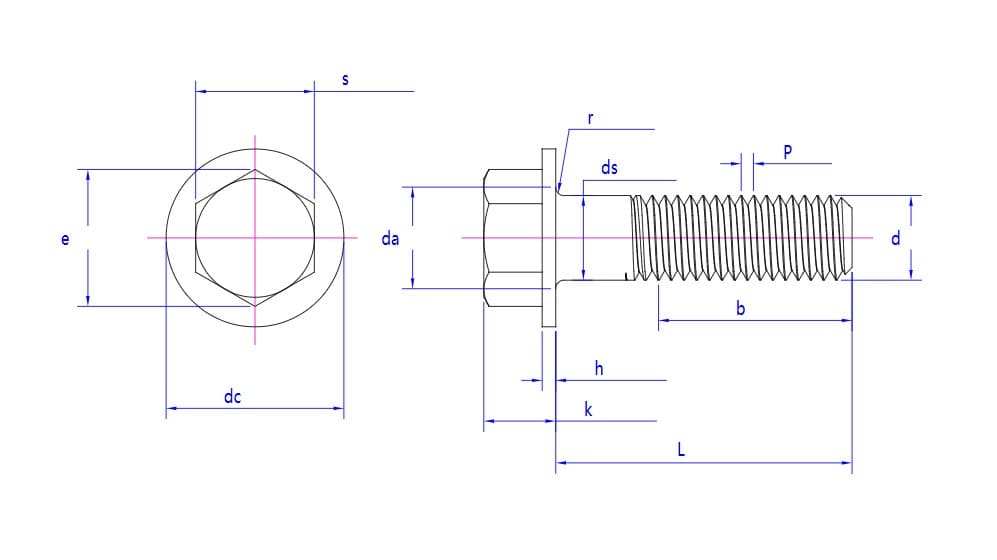

(mm)	M4	M5	M6	M8	M10	M12
p	0.7	0.8	1	1.25	1.5	1.75
de max	10.5	12	14	17.5	21	25
ds max	4	5	6	8	10	12
ds min	3.9	4.9	5.9	7.85	9.85	11.8
e min	7.74	8.87	11.05	13.25	15.51	18.9
h max	0.95	1.15	1.4	1.6	1.85	2.25
h min	0.65	0.85	1.25	1.35	1.75	2.0
k max	3.6	4.5	5.4	6.9	8.0	10.2
r min	0.2	0.25	0.4	0.4	0.5	0.6
s max	7	8	10	12	13.75	17
s min	6.8	7.8	9.8	11.75	13.75	16.75
da max	4.7	5.7	6.8	9.2	11.2	14.2

Our Hex Washer Head Yellow Zinc Bolt, a reliable and durable fastening solution ideal for a variety of industrial and construction applications. Designed for ease of installation and long-lasting performance, this bolt combines quality materials with corrosion-resistant coating to meet your needs.

Key features:

Hex washer head for secure tightening and fastening
Yellow zinc plating for enhanced corrosion resistance and attractive finish
Available in multiple sizes to accommodate different project requirements
Precisely engineered dimensions for consistent performance
Suitable for use with compatible nuts and washers

Specifications:

Metric sizes: M4, M5, M6, M8, M10, M12
Pitch (p): 0.7mm (M4), 0.8mm (M5), 1mm (M6), 1.25mm (M8), 1.5mm (M10), 1.75mm (M12)
Maximum outer diameter (de max): 10.5mm (M4), 12mm (M5), 14mm (M6), 17.5mm (M8), 21mm (M10), 25mm (M12)
Maximum and minimum shank diameter (ds max/min): 4/3.9mm (M4), 5/4.9mm (M5), 6/5.9mm (M6), 8/7.85mm (M8), 10/9.85mm (M10), 12/11.8mm (M12)
Minimum effective length (e min): Ranges from 7.74mm (M4) to 18.9mm (M12)
Maximum head height (h max): 0.95mm (M4) up to 2.25mm (M12)
Minimum head height (h min): 0.65mm (M4) up to 2.0mm (M12)
Maximum shank radius (r min): 0.2mm (M4) up to 0.6mm (M12)
Maximum shank length (s max): 7mm (M4) up to 17mm (M12)
Minimum shank length (s min): 6.8mm (M4) up to 16.75mm (M12)
Maximum diameter of the threaded body (da max): 4.7mm (M4) up to 14.2mm (M12)

Our Yellow Zinc Hex Washer Head Bolts provide superior corrosion resistance, precise dimensions, and reliable fastening performance, making them an excellent choice for distributors seeking quality hardware for diverse applications.
