Anti Theft Motorcycle Grade 8.8 Yellow Zinc Hex Serrated Flange Bolt

$0.01

  • Features a serrated flange for secure fastening and resistance to loosening
  • Made from high-strength Grade 8.8 steel for durability
  • Coated with yellow zinc for corrosion resistance
  • Hex head design allows easy installation and removal
  • Suitable for motorcycle applications with specific size and strength specifications

Categories: ,

Description

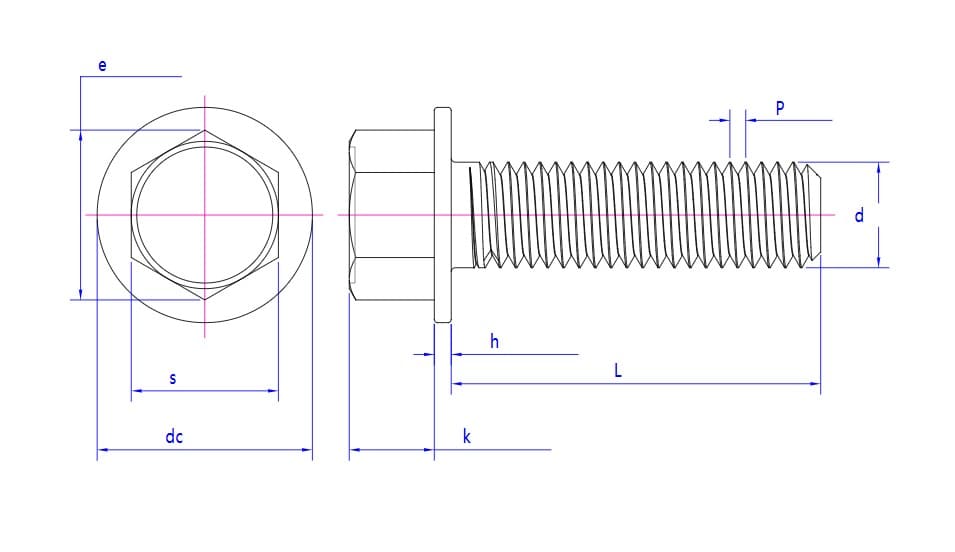

DIN 6921 Hex Flange Bolt, front and side views with labeled diameter, length, and thread dimensions.

(inch) #2 #3
P 56/64 48/56
s max 0.125 0.125
s min 0.12 0.12
e min 0.134 0.134
k max 0.05 0.055
k min 0.04 0.044
dc max 0.166 0.177
dc min 0.154 0.163
h max 0.016 0.016
h min 0.01 0.01



Our Anti Theft Motorcycle Grade 8.8 Yellow Zinc Hex Serrated Flange Bolt is designed for enhanced security and durability in motorcycle applications.

Key Features:

  • Serrated flange for secure fastening and resistance to loosening
  • Crafted from high-strength Grade 8.8 steel for reliable performance
  • Yellow zinc coating provides corrosion resistance and long-lasting finish
  • Hex head allows for easy installation and removal

Specifications:

  • Thread sizes: #2 (56/64 to 48/56) and #3 (48/56 to 0.125) inches
  • Shear strength (s max): 0.125 inches for both sizes
  • Shear strength (s min): 0.12 inches for both sizes
  • Minimum extension (e min): 0.134 inches for both sizes
  • Maximum flange thickness (k max): 0.055 inches (#3), 0.05 inches (#2)
  • Minimum flange thickness (k min): 0.044 inches (#3), 0.04 inches (#2)
  • Maximum coated section diameter (dc max): 0.177 inches (#3), 0.166 inches (#2)
  • Minimum coated section diameter (dc min): 0.163 inches (#3), 0.154 inches (#2)
  • Head height: max 0.016 inches, min 0.01 inches for both sizes

Our Serrated Flange Bolt is an excellent choice for distributors seeking a secure, corrosion-resistant fastening solution that combines strength and locking performance for motorcycle security applications.
