Phillips Pan Head Wood Self Tapping Screws

Name: Zinc Plated Galvanized Steel Phillips Pan Head Wood Self Tapping Screws
SKU: 12052
Availability: InStock

Zinc Plated Galvanized Steel Phillips Pan Head Wood Self Tapping Screws

High-quality steel for superior strength.
Zinc plated for enhanced corrosion resistance.
Sharp point for effortless penetration; no pre-drilling needed.
Flat Phillips Drive Bugle Head for easy installation.
Perfect for furniture assembly, cabinetry, and more.

MOQ: 10000pcs

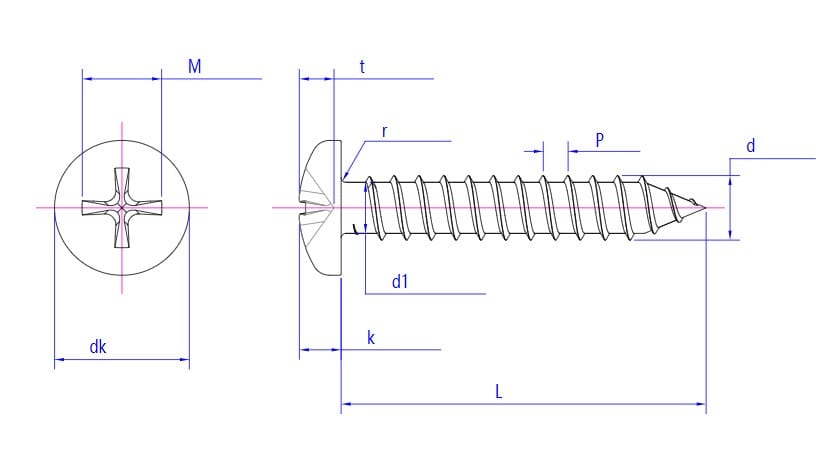

Technical drawing of zinc-plated pan head wood screws with labeled diameter, length, thread pitch, and head size.

(inch)	#0	#1	#2	#3	#4	#5	#6	#7	#8	#9	#10	#12	#14	#16	#18	#20	#24
P	32	28	26	24	22	20	18	16	15	14	13	11	10	9	8	8	7
dk max	0.116	0.142	0.167	0.193	0.219	0.245	0.27	0.296	0.322	0.348	0.373	0.425	0.492	0.528	0.615	0.631	0.74
dk min	0.104	0.13	0.155	0.18	0.205	0.231	0.256	0.281	0.306	0.331	0.357	0.407	0.473	0.508	0.594	0.608	0.716
k max	0.044	0.053	0.062	0.071	0.08	0.089	0.097	0.106	0.115	0.124	0.133	0.151	0.175	0.187	0.218	0.223	0.261
k min	0.036	0.044	0.053	0.062	0.07	0.079	0.087	0.096	0.105	0.114	0.122	0.139	0.162	0.173	0.203	0.208	0.244
M max	0.076	0.089	0.109	0.125	0.143	0.159	0.176	0.19	0.207	0.223	0.24	0.272	0.318	0.341	0.396	0.396	0.48
M min	0.066	0.079	0.097	0.113	0.13	0.145	0.162	0.175	0.192	0.208	0.224	0.254	0.3	0.322	0.375	0.375	0.457
t max	0.038	0.046	0.059	0.069	0.079	0.09	0.096	0.105	0.116	0.127	0.137	0.158	0.18	0.195	0.231	0.231	0.286
t min	0.026	0.034	0.046	0.056	0.066	0.076	0.082	0.09	0.101	0.112	0.122	0.142	0.163	0.178	0.212	0.212	0.266
r max	0.016	0.016	0.016	0.016	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.046	0.046
d max	0.064	0.077	0.09	0.103	0.116	0.129	0.142	0.155	0.168	0.181	0.194	0.22	0.246	0.272	0.298	0.324	0.376
d min	0.053	0.066	0.079	0.092	0.105	0.118	0.131	0.144	0.157	0.17	0.183	0.209	0.235	0.261	0.287	0.313	0.365
d1 max	0.055	0.066	0.075	0.086	0.095	0.107	0.118	0.127	0.136	0.147	0.157	0.176	0.201	0.214	0.237	0.26	0.303
d1 min	0.044	0.055	0.064	0.075	0.084	0.096	0.107	0.116	0.125	0.136	0.146	0.165	0.19	0.203	0.226	0.249	0.292

Zinc Plated Galvanized Steel Phillips Pan Head Wood Self Tapping Screws are designed for reliable fastening in wood, sheet metals, composite materials, and plastics. Their sharp point and durable finish ensure strong and secure connections.

Key Features:

Finish: Zinc Plated, providing corrosion resistance
Material: Steel for durability and strength
Application: Ideal for wood, sheet metals, composite materials, and plastic
Point Style: Sharp Point for effortless penetration
Head Type: Flat Phillips Drive with Bugle Head for secure fastening and a smooth appearance

Specifications:

Length options from 0.116 inches (#0) to 0.376 inches (#20)
Diameter (d max): 0.064 to 0.376 inches, with specified min/max ranges
Thread and geometry details (dk max/min, k max/min, M max/min, t max/min, r max, d max/min, d1 max/min) for precise application
Engineered to perform effectively across various materials and applications

These zinc plated galvanized steel Phillips pan head wood self tapping screws combine corrosion resistance, strength, and ease of use, making them a dependable choice for distribution in a variety of fastening projects.

Finish	ZINC PLATED
Material	Steel
Application	sheet metals, composite materials, timber, and plastic. wood
Point Style	Sharp Point
Head type	Flat Phillips Drive Bugle Head
