Tamper Proof Torx 6 Lobe Screw with Pin

$0.01

  • Tamper-proof design with Torx 6 lobe head and pin enhances security.
  • Available in various sizes (M2 to M10, T6 to T50) for different needs.
  • Precise dimensions ensure secure fit and reliable performance.
  • Made of high-quality materials for durability and tamper resistance.

Description

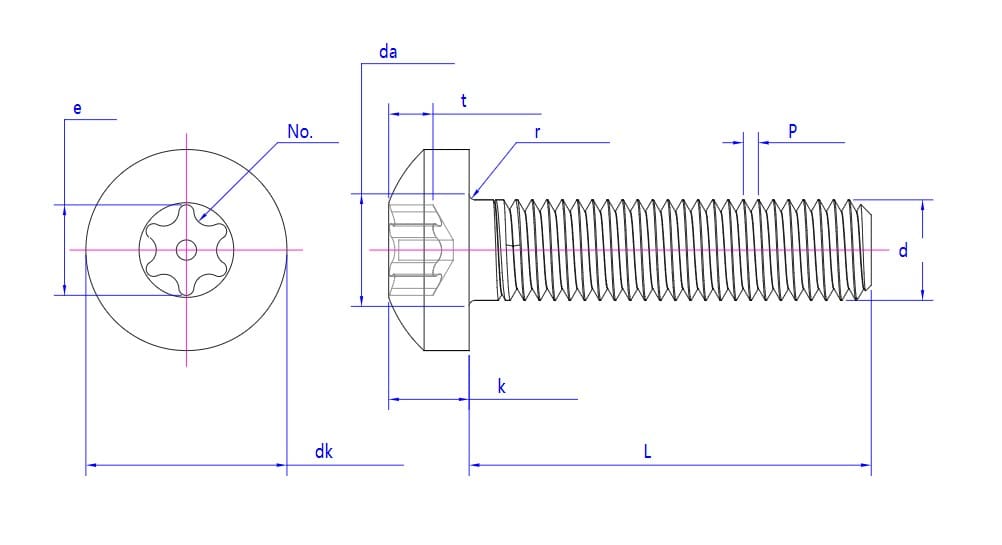

Technical drawing of Tamper Proof Torx screw, labeled side and top views highlighting 6-lobe drive with pin.

(mm) M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
p 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
da max 2.6 3.1 3.6 4.1 4.7 5.7 6.8 9.2 11.2
dk max 4 5 5.6 7 8 9.5 12 16 20
dk min 3.7 4.7 5.3 6.64 7.64 9.14 11.57 15.57 19.48
k max 1.6 2.1 2.4 3.1 3.7 4.3 4.9 6 7.5
k min 1.46 1.96 2.26 2.46 2.92 3.52 4.3 5.7 7.14
No. T6 T8 T10 T15 T20 T25 T30 T45 T50
e 1.75 2.4 2.8 3.35 3.95 4.5 5.6 7.95 8.95
t max 0.77 1.04 1.27 1.33 1.66 1.91 2.42 3.18 4.02
t min 0.63 0.91 1.01 1.07 1.27 1.52 2.02 2.79 3.62
r min 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4



Tamper Proof Torx 6 Lobe Screw with Pin offer secure fastening solutions designed to prevent unauthorized tampering. Ideal for applications requiring high security, these screws combine durability with specialized design features.

Key Features:

  • Tamper-proof design with Torx 6 lobe head and pin for enhanced security
  • Available in various sizes to suit diverse needs, including sizes M2 to M10 and T6 to T50
  • Precise dimensions ensure secure fit and reliable performance
  • High-quality materials for durability and resistance to tampering

Specifications:

  • Torx sizes: T6, T8, T10, T15, T20, T25, T30, T45, T50
  • Dimensions (d max): from 2.6 mm (M2) to 11.2 mm (M10)
  • Head dimensions (da max): from 4 mm to 20 mm
  • Key dimensions (e): from 1.75 mm to 8.95 mm
  • Minimum and maximum thickness (t min / t max): 0.63 mm to 4.02 mm
  • Minimum radius (r min): 0.1 mm to 0.4 mm

These Tamper Proof Torx 6 Lobe Screw with Pin provide a secure and reliable fastening solution suitable for high-security applications. With a range of sizes and precise specifications, they are ideal for distributors seeking durable, tamper-resistant hardware.
