Hex Flange Bolt
$0.01
- Hex head with flange for better torque and load distribution.
- Available in various sizes from M12 to M42.
- Precise dimensions ensure compatibility with standard tools.
- Strong, durable construction for industrial use.
- Suitable for diverse fastening applications.
Category: Bolts
Description

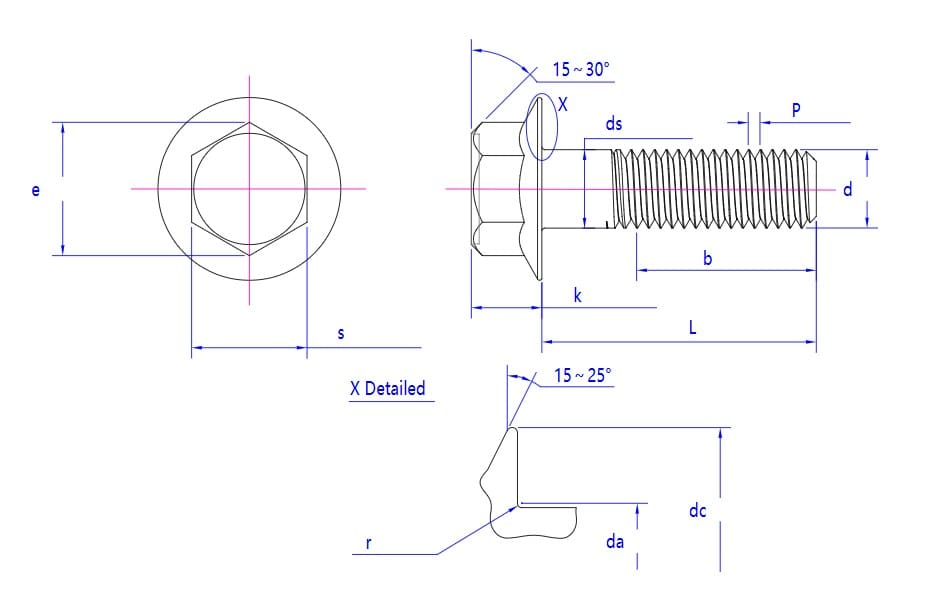

(mm) | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P | 1.75 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 |
da max | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 |
dc max | 26.6 | 30.5 | 35 | 39 | 43 | 47 | 51 | 57 | 63 | 70 | 77 | 83 | 90 |
ds max | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
ds min | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 38.61 | 41.61 |
e min | 19.68 | 22.58 | 25.94 | 29.56 | 32.6 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 64.64 | 70.02 |
k max | 10.4 | 12.4 | 14.1 | 15.9 | 17.7 | 19.5 | 21.4 | 24.1 | 26 | 29.5 | 31.7 | 33.5 | 37.4 |
r min | 0.6 | 0.6 | 0.6 | 0.7 | 0.8 | 0.9 | 0.9 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 |
s max | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 |
s min | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 |
The Hex Flange Bolt is a robust fastening solution designed for secure assembly applications, available in various sizes to meet diverse requirements.
Key Features:
- Designed with a hex head and flange for improved torque and load distribution
- Multiple sizes ranging from M12 to M42 to suit different fastening needs
- Precise dimensions ensure compatibility with standard tools and accessories
- Strong and durable construction suitable for industrial and mechanical applications
Specifications:
- Thread sizes: M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42
- Pitch (P): 1.75 mm (M12) to 4.5 mm (M42)
- Maximum outer diameter of the head (da max): 13.7 mm to 45.6 mm
- Maximum diameter of the neck (dc max): 26.6 mm to 90 mm
- Maximum shank diameter (ds max): 12 mm to 42 mm
- Minimum shank diameter (ds min): 11.73 mm to 41.61 mm
- Minimum effective length (e min): 19.68 mm to 70.02 mm
- Maximum height (k max): 10.4 mm to 37.4 mm
- Minimum radius of thread runout (r min): 0.6 mm to 1.4 mm
- Maximum grip length (s max): 18 mm to 65 mm
- Minimum grip length (s min): 17.57 mm to 63.8 mm
The Hex Flange Bolt offers reliable performance and precise dimensions suitable for a wide range of industrial fastening applications, making it an essential component for distributors seeking quality and versatility in bolt solutions.
