Stainless Steel Spring Washers for Reliable and Durable Fastening Solutions
$0.01
- Corrosion-resistant stainless steel
- Elastic and springy for tension
- Ideal for tough and outdoor use
- Accurate sizes for good fit
- Various sizes available
Categories: Stainless Steel Washers, Washers
Description
(mm) | Φ2 | Φ2.5 | Φ3 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 |
---|---|---|---|---|---|---|---|---|---|---|---|
d min | 2.1 | 2.6 | 3.1 | 4.1 | 5.1 | 6.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 |
d max | 2.35 | 2.85 | 3.4 | 4.4 | 5.4 | 6.68 | 8.68 | 10.9 | 12.9 | 14.9 | 16.9 |
b min | 0.42 | 0.57 | 0.7 | 1 | 1.2 | 1.5 | 2 | 2.45 | 2.95 | 3.8 | 3.9 |
b max | 0.58 | 0.73 | 0.9 | 1.2 | 1.4 | 1.7 | 2.2 | 2.75 | 3.25 | 3.8 | 4.3 |
h min | 0.42 | 0.57 | 0.7 | 1 | 1.2 | 1.5 | 2 | 2.45 | 2.95 | 3.4 | 3.9 |
h max | 0.58 | 0.73 | 0.9 | 12 | 1.4 | 1.7 | 2.2 | 2.75 | 3.25 | 3.8 | 4.3 |
H min | 1 | 1.3 | 1.6 | 2.2 | 2.6 | 3.2 | 4.2 | 5.2 | 6.2 | 7.2 | 8.2 |
H max | 1.25 | 1.63 | 2 | 2.75 | 3.25 | 4.25 | 5.25 | 6.5 | 7.75 | 9 | 10.25 |
(mm) | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ33 | Φ36 | Φ39 | Φ42 | Φ45 | Φ48 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
d min | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 33.5 | 36.5 | 39.5 | 42.5 | 45.5 | 48.5 |
d max | 19.04 | 21.04 | 23.34 | 25.5 | 28.5 | 31.5 | 34.7 | 37.7 | 40.7 | 43.7 | 46.7 | 49.7 |
b min | 4.3 | 4.8 | 5.3 | 5.8 | 6.5 | 7.2 | 8.2 | 8.7 | 9.7 | 10.2 | 10.7 | 11.7 |
b max | 4.7 | 5.2 | 5.7 | 6.2 | 7.1 | 7.8 | 8.8 | 9.3 | 10.8 | 11.3 | 11.8 | 12.3 |
h min | 4.3 | 4.8 | 5.3 | 5.8 | 6.5 | 7.2 | 8.2 | 8.7 | 9.7 | 10.2 | 10.7 | 11.7 |
h max | 4.7 | 5.2 | 5.7 | 6.2 | 7.1 | 7.8 | 8.8 | 9.3 | 10.3 | 10.8 | 11.3 | 12.3 |
H min | 9 | 10 | 11 | 12 | 13.6 | 15 | 17 | 18 | 20 | 21 | 22 | 24 |
H max | 11.25 | 12.5 | 13.75 | 15 | 17 | 18.75 | 21.25 | 22.5 | 25 | 26.25 | 27.5 | 30 |
Stainless Steel Spring Washers are essential components for reliable and durable fastening applications. Designed to provide consistent tension and secure connections, these washers are ideal for various industrial and mechanical uses.
Key Features:
- Made from high-quality stainless steel for corrosion resistance and extended service life
- Offer excellent elasticity and spring action to maintain tension
- Suitable for high-stress environments and outdoor applications
- Precise dimensions ensure proper fit and function
- Available in a wide range of sizes to meet diverse fastening needs
Specifications:
- Sizes range from Φ2 mm to Φ48 mm, encompassing various diameters for versatility

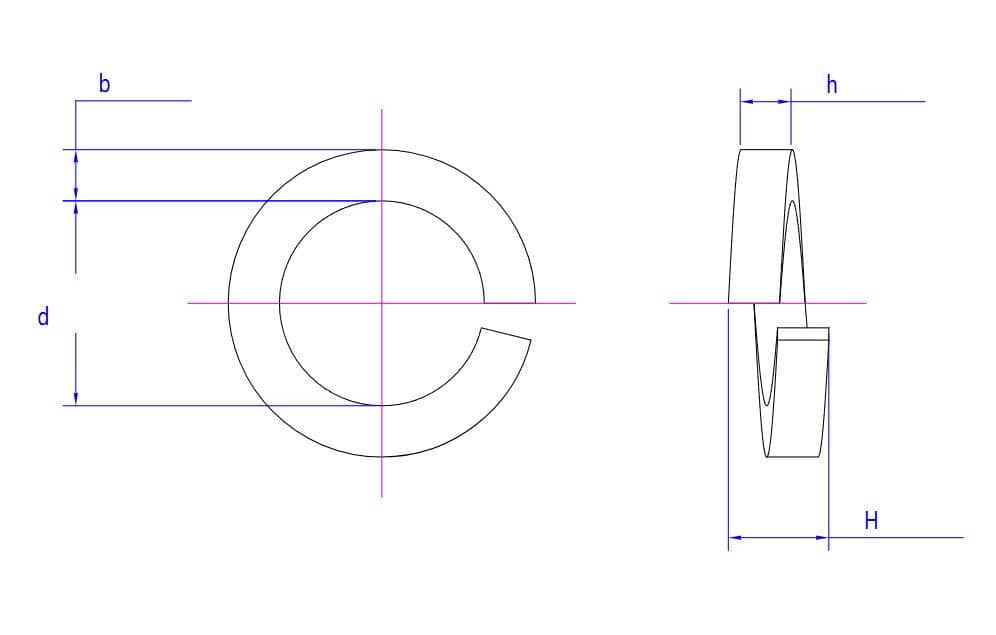

- Dimensional ranges include minimum and maximum values for diameter (d), width (b), height (h), and overall height (H)
- For smaller sizes (Φ2–Φ16): d min from 2.1 mm to 16.2 mm, d max from 2.35 mm to 16.9 mm, H min from 1 mm to 8.2 mm
- For larger sizes (Φ18–Φ48): d min from 18.2 mm to 48.5 mm, d max from 19.04 mm to 49.7 mm, H min from 9 mm to 24 mm
Stainless Steel Spring Washers are a dependable fastening solution offering durability, flexibility, and precise sizing. Ideal for distributors seeking to supply high-quality, corrosion-resistant washers for a variety of industrial applications.
