A set of four Stainless Steel Phillips Truss Head Screws in various lengths is shown against a white background.

Four stainless steel Phillips truss head screws, of varying lengths, are lined up neatly on a white background.

Mushroom Phillips Round Head Stainless Steel Self-Tapping Corrosion Resistant Screws

$0.01

High-quality stainless steel for rust and corrosion resistance.
Plain finish for a sleek, professional appearance.
Phillips drive mushroom head for a secure, flush fit.
Ideal for building and woodworking tasks.

Category: Self Tapping Screws

Description
Additional information

Description

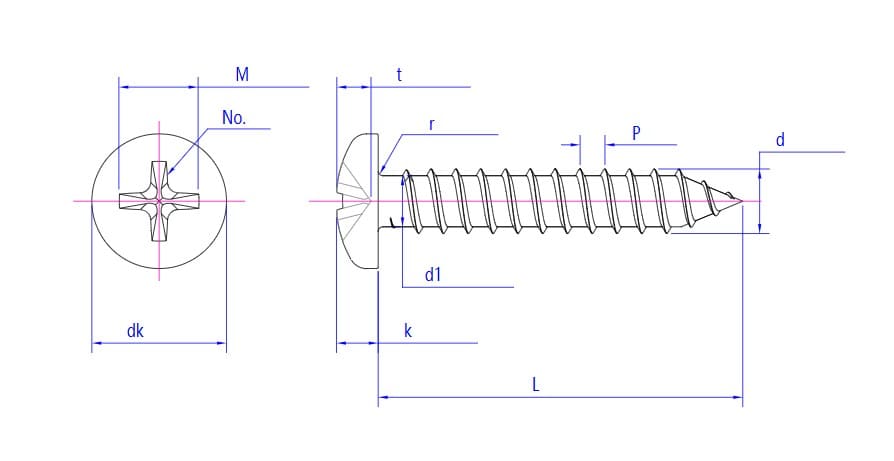

(inch)	#0	#1	#2	#3	#4	#5	#6	#7	#8	#9	#10	#12	#14	#16	#18	#20	#24
P	32	28	26	24	22	20	18	16	15	14	13	11	10	9	8	8	7
dk max	0.116	0.142	0.167	0.193	0.219	0.245	0.27	0.296	0.322	0.348	0.373	0.425	0.492	0.528	0.615	0.631	0.74
dk min	0.104	0.13	0.155	0.18	0.205	0.231	0.256	0.281	0.306	0.331	0.357	0.407	0.473	0.508	0.594	0.608	0.716
k max	0.044	0.053	0.062	0.071	0.08	0.089	0.097	0.106	0.115	0.124	0.133	0.151	0.175	0.187	0.218	0.223	0.261
k min	0.036	0.044	0.053	0.062	0.07	0.079	0.087	0.096	0.105	0.114	0.122	0.139	0.162	0.173	0.203	0.208	0.244
M max	0.067	0.074	0.104	0.112	0.122	0.158	0.166	0.176	0.182	0.19	0.199	0.259	0.281	0.292	0.35	0.35	0.389
M min	0.054	0.061	0.091	0.099	0.109	0.145	0.153	0.163	0.169	0.177	0.186	0.246	0.268	0.279	0.337	0.337	0.376
t max	0.039	0.045	0.059	0.068	0.078	0.083	0.091	0.1	0.108	0.116	0.124	0.141	0.161	0.175	0.193	0.193	0.233
t min	0.021	0.025	0.041	0.05	0.06	0.057	0.066	0.075	0.082	0.091	0.1	0.115	0.135	0.149	0.169	0.169	0.21
r max	0.016	0.016	0.016	0.016	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.046	0.046	0.046
No.	0	0	1	1	2	2	2	2	3	3	4	4	4	4	4	4	4
d max	0.064	0.077	0.09	0.103	0.116	0.129	0.142	0.155	0.168	0.181	0.194	0.22	0.246	0.272	0.298	0.324	0.376
d min	0.053	0.066	0.079	0.092	0.105	0.118	0.131	0.144	0.157	0.17	0.183	0.209	0.235	0.261	0.287	0.313	0.365
d1 max	0.055	0.066	0.075	0.086	0.095	0.107	0.118	0.127	0.136	0.147	0.157	0.176	0.201	0.214	0.237	0.26	0.303
d1 min	0.044	0.055	0.064	0.075	0.084	0.096	0.107	0.116	0.125	0.136	0.146	0.165	0.19	0.203	0.226	0.249	0.292

Introducing the Mushroom Phillips Round Head Stainless Steel Self-Tapping Screws, designed for durability and corrosion resistance. Ideal for building and wood applications, these screws combine reliable performance with a sleek finish.

Key Features:

Corrosion resistant stainless steel material ensuring longevity
Plain finish for versatile use and aesthetic compatibility
Mushroom-shaped Phillips drive head for easy installation
Suitable for building and wood projects
Self-tapping design facilitates quick and efficient fastening

Specifications:

Head type: Mushroom Phillips Head
Material: Stainless steel
Finish: Plain
Application: Building, Wood
Sizes: Ranges from inch #0 to #24
Max and min data for various dimensions (dk, k, M, t, r, d, d1) available to meet diverse project requirements
No. of threads varies from 0 to 4 depending on size, with corresponding d max and d min measurements ensuring precise fitting

These corrosion-resistant stainless steel screws are an excellent choice for distributors seeking reliable, durable fasteners suitable for construction and woodworking projects. Their high-quality materials and versatile design ensure performance and ease of use across a range of applications.
