Hexagon White Plastic Nylon Dome Nut M4/5/6/8/10/12/14/16/20

$0.01

  • Durable nylon for strength and flexibility.
  • Hexagon shape for easy installation.
  • Smooth dome exterior for safety and appearance.
  • Fits various bolt sizes (M4–M20).
  • Multiple dimensions available.
Category:

Description

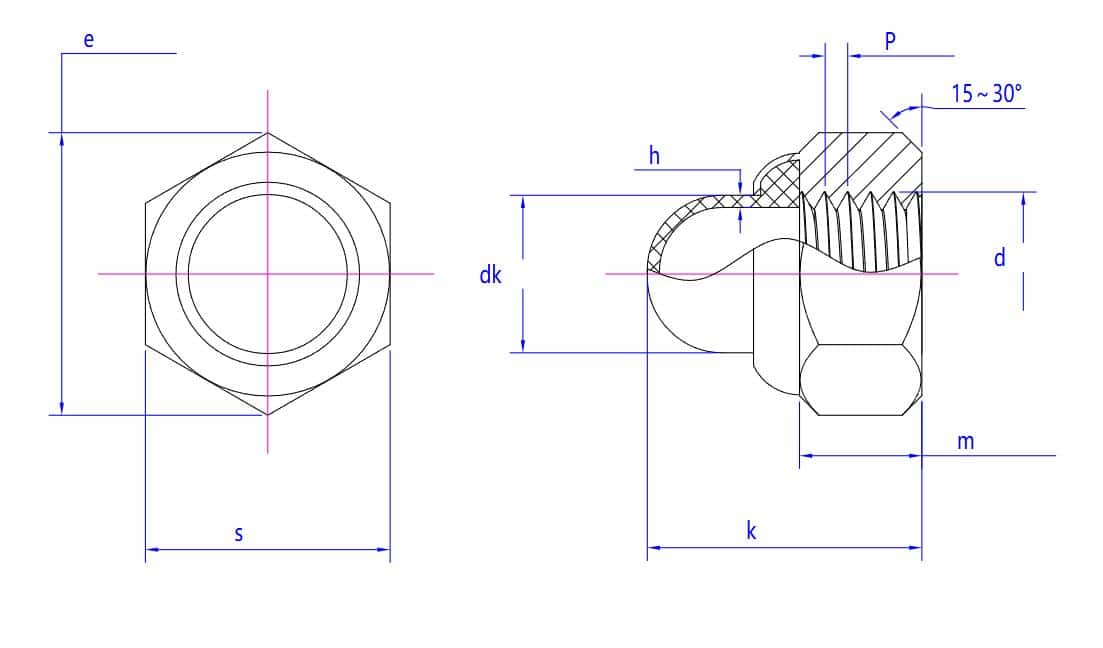

M4 Plastic Nylon Hex Nut technical drawing with labeled dimensions, cross-section showing threads, and angle details.

Grade A:

(mm) M4 M5 M6 M8 M10 M12 M14 M16
P 0.7 0.8 1 1.25 1.5 1.75 2 2
dk max 6.5 7.5 9.5 12.5 16 18 21 23
e min 7.66 8.79 11.05 14.38 17.77 20.03 23.35 26.75
k max 9.9 10.85 12.35 14.35 18.5 22.9 26.8 27.9
k min 9.3 10.15 11.65 13.65 17.7 22.1 26 27.1
m min 2.9 4.4 4.9 6.44 8.04 10.37 12.1 14.1
s max 7 8 10 13 16 18 21 24
s min 6.78 7.78 9.78 12.73 15.73 17.73 20.67 23.67
h 0.5 0.5 0.8 0.8 1 1 1 1



Grade B:

(mm) M20
P 2.5
dk max 28
e min 32.95
k max 35.5
k min 34.5
m min 16.9
s max 30
s min 29.16
h 1.2



The Nylon Dome Nut is a high-quality hexagon white plastic fastening component designed for reliable and durable connections in various applications.

Key features:

  • Made from durable nylon material for strength and flexibility
  • Hexagon shape ensures easy installation and secure tightening
  • Designed as a dome nut, providing a smooth, rounded exterior for safety and aesthetic appeal
  • Suitable for use with M4, M5, M6, M8, M10, M12, M14, and M16 bolts for Grade A; and M20 bolts for Grade B
  • Available with various dimensions to meet different engineering needs

Specifications:

  • Grade A:
    • Thread sizes: M4 to M16
    • P (Pitch): 0.7 to 2 mm
    • dk max (Maximum outer diameter): 6.5 to 23 mm
    • e min (Minimum distance): 7.66 to 26.75 mm
    • k max (Maximum width across flats): 9.9 to 27.9 mm
    • k min (Minimum width across flats): 9.3 to 27.1 mm
    • m min (Minimum height): 2.9 to 14.1 mm
    • s max/min (Maximum/minimum spacing): 7 to 23.67 mm
    • h (Nut height): 0.5 to 1 mm
  • Grade B:
    • Thread size: M20
    • P (Pitch): 2.5 mm
    • dk max (Maximum outer diameter): 28 mm
    • e min (Minimum distance): 32.95 mm
    • k max/min (Width across flats): 35.5 / 34.5 mm
    • m min (Minimum height): 16.9 mm
    • s max/min (Spacing): 30 / 29.16 mm
    • h (Nut height): 1.2 mm

The Nylon Dome Nut offers a reliable and versatile fastening solution with precise dimensions and robust nylon construction, ideal for a variety of industrial and mechanical applications, making it a suitable choice for distributors seeking quality nylon dome nuts.
