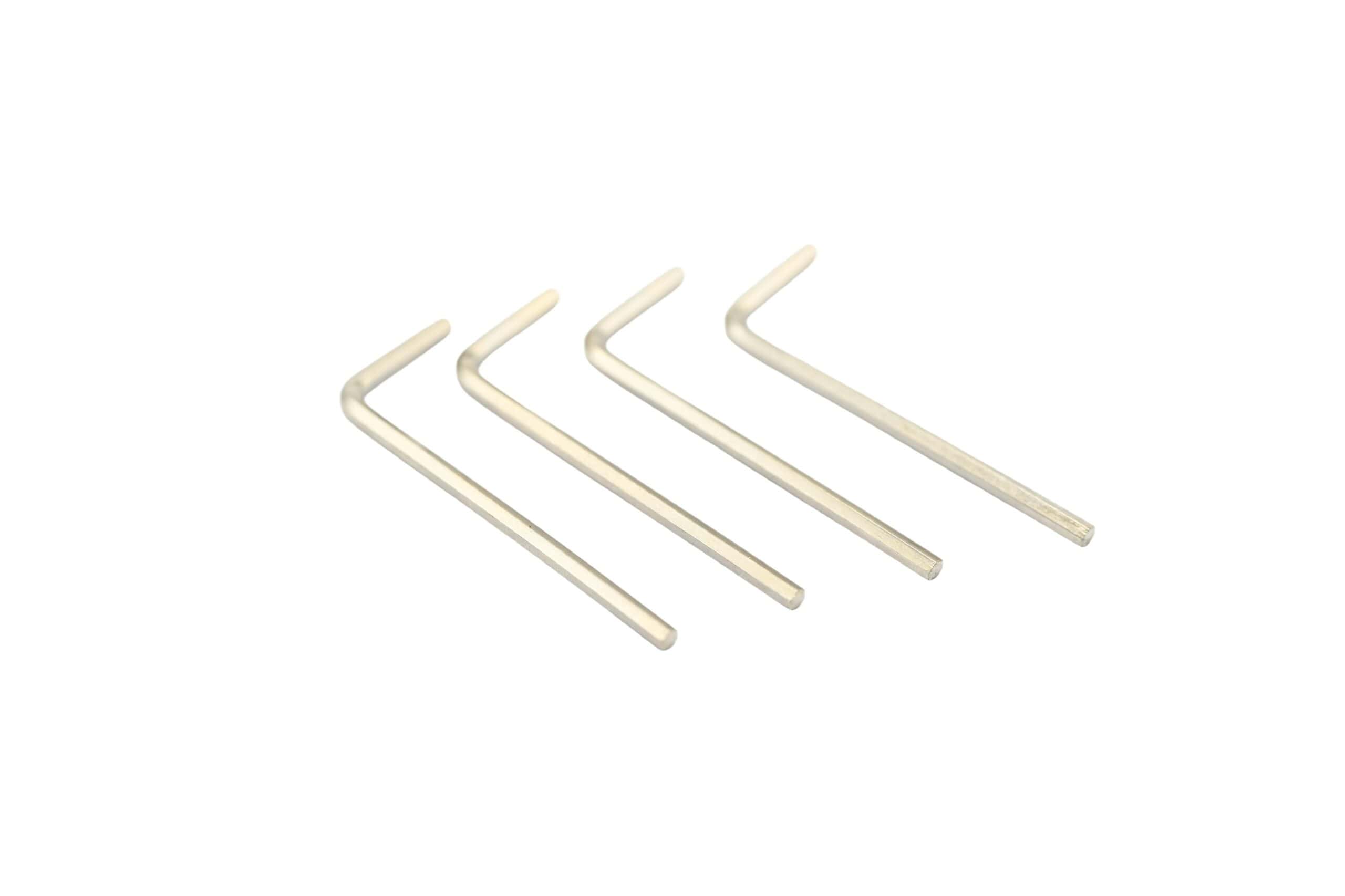

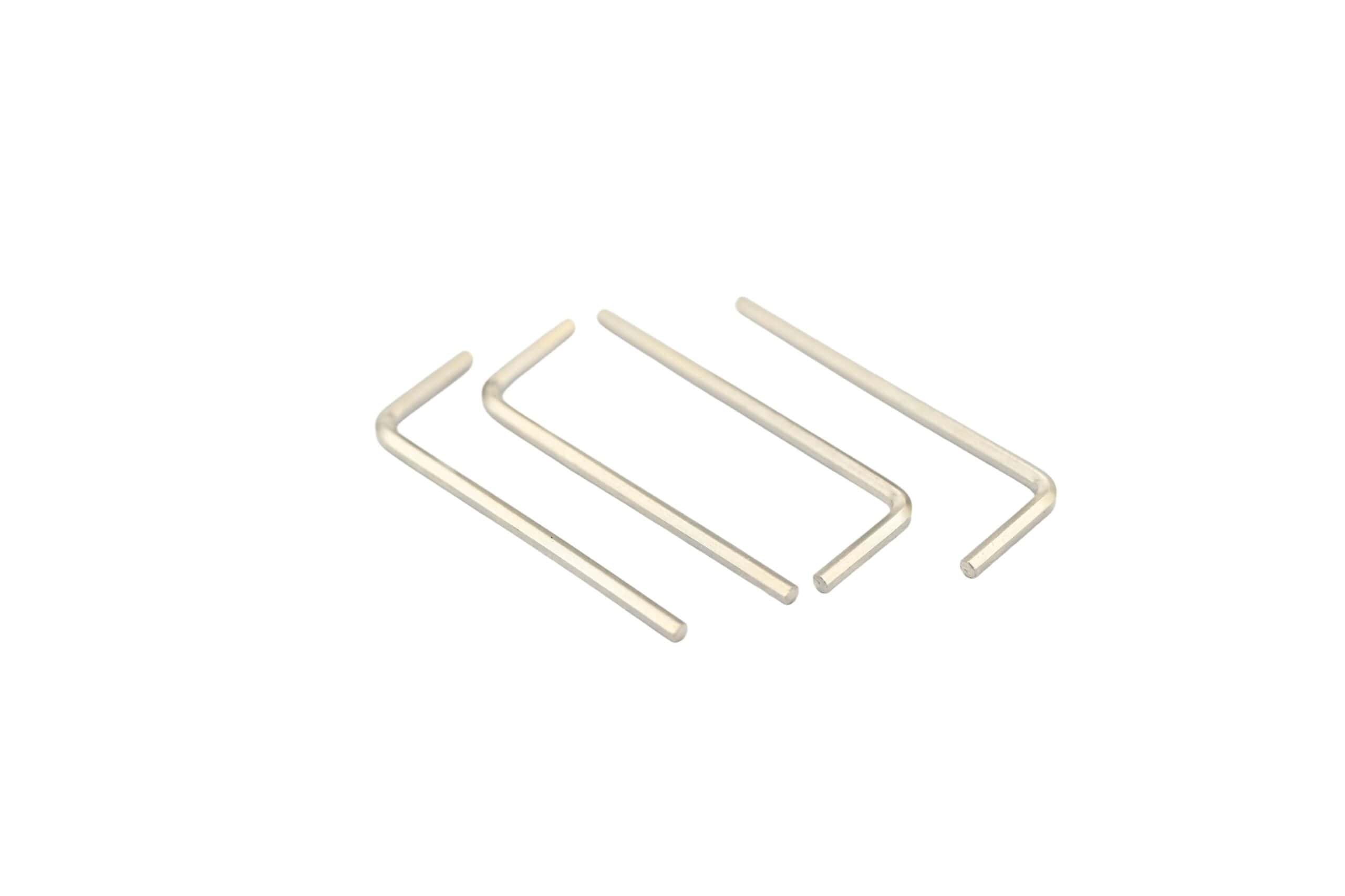

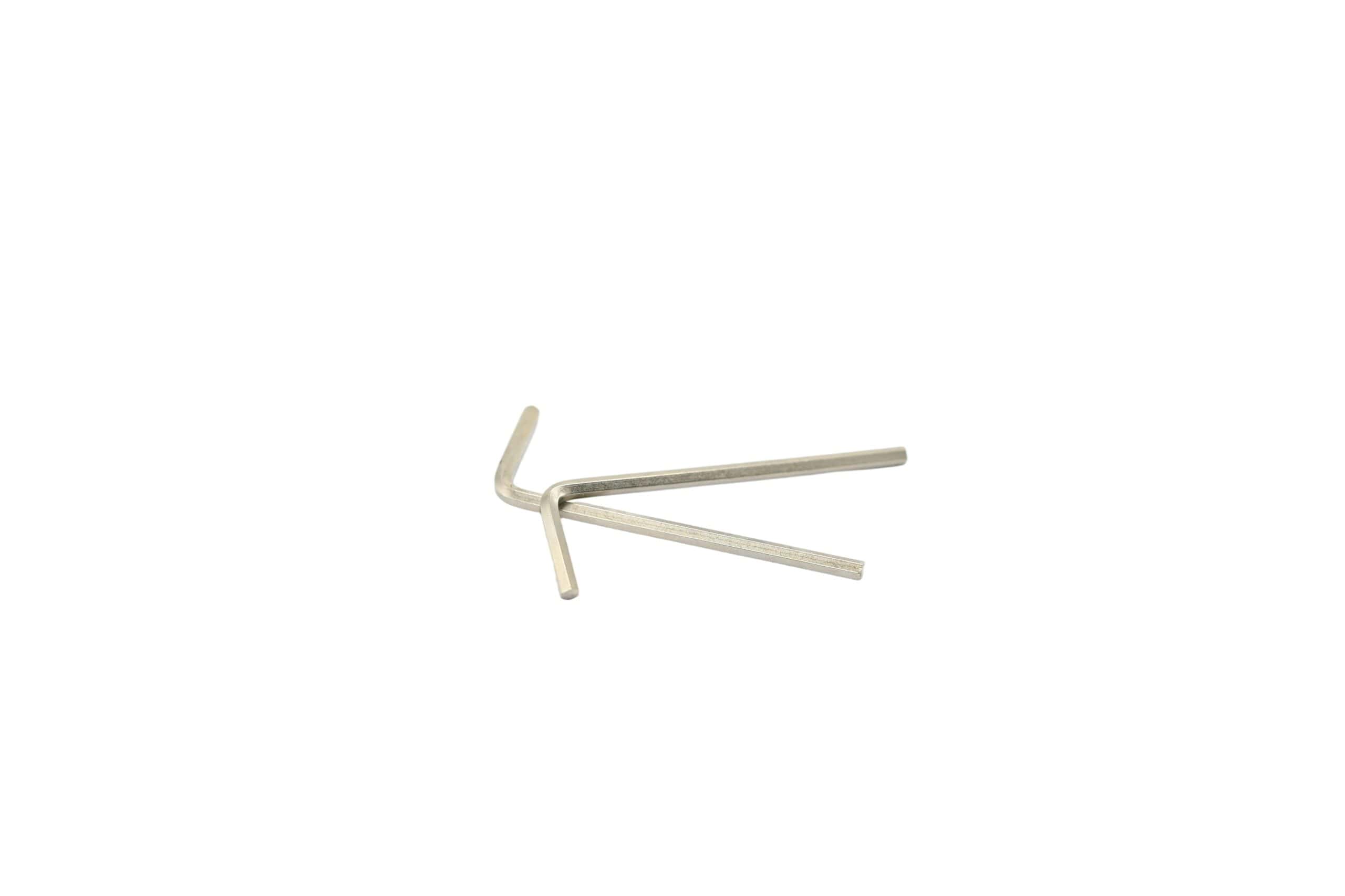

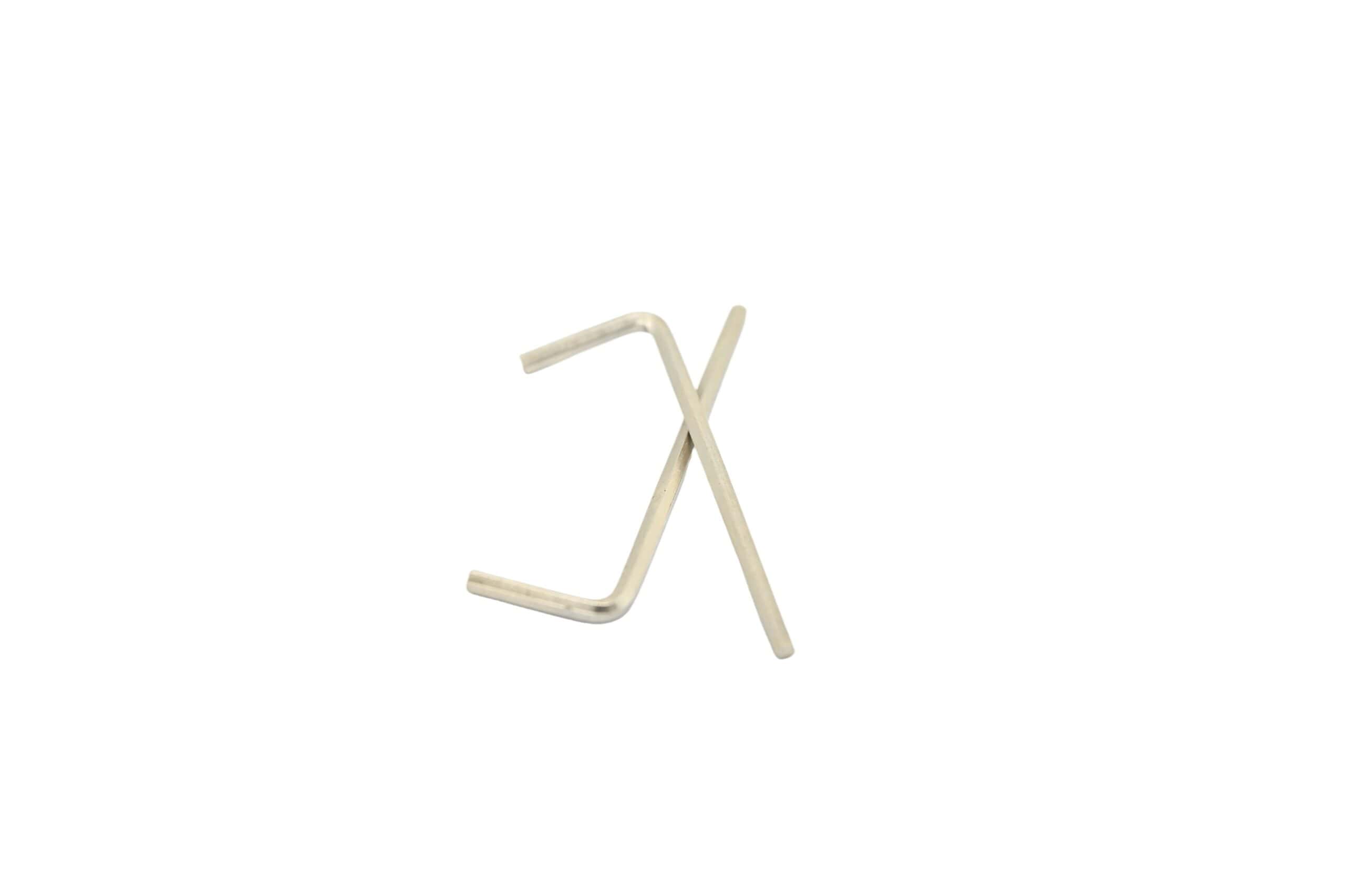

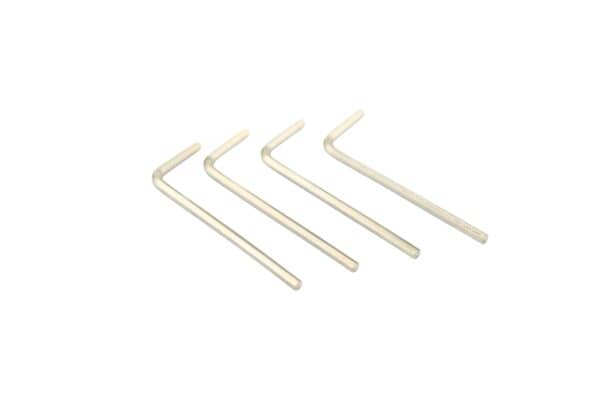

CRV Allen Key Hexagon Socket L Shaped Wrench, Nickel, Chrome, Zinc Plated
- Durable, high-quality materials (40CR, CRV steel)
- Corrosion-resistant surface treatments (Nickel, Chrome, Zinc)
- Multiple sizes (11mm–36mm) with precise dimensions
- L-shaped design for comfortable grip and torque
- Customizable colors and branding
- Ideal for industrial and maintenance use
Description
(mm) | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 | 9 | 10 |
s max | 0.71 | 0.89 | 1.27 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 | 9 | 10 |
s min | 0.7 | 0.88 | 1.24 | 1.48 | 1.96 | 2.46 | 2.96 | 3.45 | 3.95 | 4.45 | 4.95 | 5.95 | 6.94 | 7.94 | 8.94 | 9.94 |
e max | 0.79 | 0.99 | 1.42 | 1.68 | 2.25 | 2.82 | 3.39 | 3.96 | 4.53 | 5.1 | 5.67 | 6.81 | 7.94 | 9.09 | 10.23 | 11.37 |
e min | 0.76 | 0.96 | 1.37 | 1.63 | 2.18 | 2.75 | 3.31 | 3.91 | 4.44 | 5.04 | 5.58 | 6.71 | 7.85 | 8.97 | 10.1 | 11.23 |
L1 max | 33 | 33 | 41 | 46.5 | 52 | 58.5 | 66 | 69.5 | 74 | 80 | 85 | 96 | 102 | 108 | 114 | 122 |
L1 min | 31 | 31 | 39 | 44.5 | 50 | 54.5 | 62 | 65.5 | 70 | 76 | 81 | 92 | 96 | 102 | 108 | 116 |
L2 max | 7 | 11 | 13 | 15.5 | 18 | 20.5 | 23 | 25.5 | 29 | 30.5 | 33 | 38 | 41 | 44 | 47 | 50 |
L2 min | 5 | 9 | 11 | 13.5 | 16 | 18.5 | 21 | 23.5 | 27 | 28.5 | 31 | 36 | 39 | 42 | 45 | 48 |
(mm) | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 21 | 22 | 23 | 24 | 27 | 29 | 30 | 32 | 36 |
s max | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 21 | 22 | 23 | 24 | 27 | 29 | 30 | 32 | 36 |
s min | 10.89 | 11.89 | 12.89 | 13.89 | 14.89 | 15.89 | 16.89 | 17.89 | 18.87 | 20.87 | 21.87 | 22.87 | 23.87 | 26.87 | 28.87 | 29.87 | 31.84 | 35.84 |
e max | 12.51 | 13.65 | 14.79 | 15.93 | 17.07 | 18.21 | 19.35 | 20.49 | 21.63 | 23.91 | 25.05 | 26.16 | 27.33 | 30.75 | 33.03 | 34.17 | 36.45 | 41.01 |
e min | 12.31 | 13.44 | 14.56 | 15.7 | 16.83 | 17.97 | 19.09 | 20.21 | 21.32 | 23.58 | 24.71 | 25.86 | 26.97 | 30.36 | 32.59 | 33.75 | 35.98 | 40.5 |
L1 max | 129 | 137 | 145 | 154 | 161 | 168 | 177 | 188 | 199 | 211 | 222 | 233 | 248 | 277 | 311 | 315 | 347 | 391 |
L1 min | 123 | 131 | 138 | 147 | 154 | 161 | 170 | 181 | 192 | 199 | 210 | 221 | 236 | 265 | 299 | 303 | 335 | 379 |
L2 max | 53 | 57 | 63 | 70 | 73 | 76 | 80 | 84 | 89 | 96 | 102 | 108 | 114 | 127 | 141 | 142 | 157 | 176 |
L2 min | 51 | 55 | 60 | 67 | 70 | 73 | 77 | 81 | 86 | 91 | 97 | 103 | 109 | 122 | 136 | 137 | 152 | 171 |
The CRV Allen Key Hexagon Socket L Shaped Wrench is a durable and reliable hand tool designed for precise tightening and loosening tasks. Made from high-quality materials with multiple surface treatment options, it offers excellent corrosion resistance and long lifespan. Ideal for distributors aiming to supply robust and versatile tools.
Key Features:
- L-shaped hexagon socket wrench for comfortable grip and efficient torque application
- Material options include 40CR and CRV steel, ensuring high strength and durability
- Surface treatments available are Nickel, Chrome, and Zinc plating for excellent corrosion resistance
- Lengths range from 11 mm to 36 mm with corresponding maximum and minimum measurements for s, e, L1, L2 parameters
- Length measurements (L1 max/min and L2 max/min) vary from approximately 31 to 391 mm depending on size
- Additional parameters like s max/min and e max/min vary proportionally with size, ensuring precise application
- Colors include standard silver or customizable options to suit branding
Specifications:
- Material: 40CR, CRV steel
- Surface Treatments: Nickel, Chrome, Zinc plating
- Type: Hexagon socket, L-shaped wrench
- Lengths: 11 mm to 36 mm, with detailed max/min measurements for each size
- Length parameters (L1 and L2): Range from approximately 31 to 391 mm (L1) and 51 to 176 mm (L2) depending on size
- Finish: Silver or customized colors
- MOQ: 1000 pieces
The CRV Allen Key Hexagon Socket L Shaped Wrench offers a comprehensive range of sizes and specifications, making it an excellent choice for distributors seeking versatile, high-quality hand tools suitable for various industrial and maintenance applications. Its robust construction and customizable options ensure long-term performance and customer satisfaction.
Additional information
Material | 40CR,CRV |
---|---|
Surface Treatment | Nickel, Chrome, Zinc |
Type | hex wrench |
Color | silver or customized |
MOQ | 1000pcs |
