Yellow Zinc Hex Serrated Flange Nut

$0.01

  • Corrosion-resistant yellow zinc plating
  • Serrated flange for anti-slip and locking stability
  • Wide size range from #6 to 3/4 inch
  • High torque and holding strength
  • Durable and suitable for various industrial applications
Category:

Description

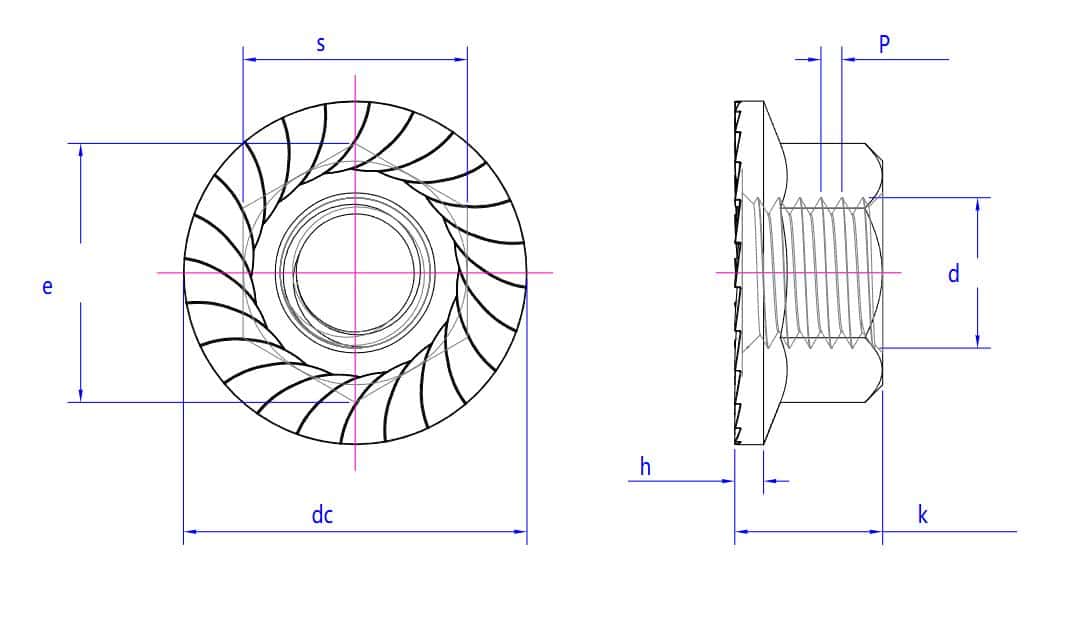

Hexagon Flange Yellow Zinc Nut technical drawing with top/side views and labeled dimensions: s, e, dc, h, k, d, P.

(inch) #6 #8 #10 #12 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4
P 32|40 32|36 24|32 24|28 20|28|32 18|24|32 16|24|32 14|20|28 13|20|28 12|18|24 11|18|24 10|16|20
s max 0.312 0.344 0.375 0.438 0.438 0.5 0.562 0.688 0.75 0.875 0.938 1.125
s min 0.302 0.334 0.365 0.428 0.428 0.489 0.551 0.675 0.736 0.861 0.922 1.088
e max 0.361 0.397 0.433 0.505 0.505 0.577 0.65 0.794 0.866 1.01 1.083 1.299
e min 0.342 0.381 0.416 0.488 0.488 0.557 0.628 0.768 0.84 0.982 1.051 1.24
dc max 0.422 0.469 0.5 0.594 0.594 0.68 0.75 0.937 1.031 1.188 1.281 1.5
dc min 0.408 0.452 0.48 0.574 0.574 0.66 0.728 0.91 1 1.155 1.248 1.46
k max 0.171 0.203 0.219 0.236 0.236 0.283 0.347 0.395 0.458 0.506 0.569 0.675
k min 0.156 0.187 0.203 0.222 0.222 0.268 0.33 0.375 0.437 0.483 0.515 0.627
h 0.02 0.02 0.03 0.04 0.04 0.04 0.04 0.04 0.05 0.05 0.05 0.06



The Yellow Zinc Hex Serrated Flange Nut is a high-quality, durable fastening component designed for secure and reliable connections in various industrial and commercial applications. Its serrated flange ensures optimal grip and stability, making it an essential choice for distributors seeking dependable fastening solutions.

Key Features:

  • Hex serrated flange nut with yellow zinc plating for corrosion resistance
  • Serrated flange surface provides anti-slip and locking capabilities
  • Available in a range of inch sizes from #6 to 3/4 inch
  • Suitable for a variety of fastening needs requiring secure locking
  • Designed to provide high torque and holding strength

Specifications:

  • Pitch (P): varies from 24 to 40, depending on size
  • Max and min dimensions for s (s max: 0.344–1.125 inches; s min: 0.334–1.088 inches)
  • Max and min dimensions for e (e max: 0.397–1.299 inches; e min: 0.381–1.24 inches)
  • Max and min dimensions for dc (dc max: 0.469–1.5 inches; dc min: 0.452–1.46 inches)
  • Max and min dimensions for k (k max: 0.203–0.675 inches; k min: 0.187–0.627 inches)
  • Thickness (h): ranges from 0.02 inches for smaller sizes to 0.06 inches for larger sizes

The Yellow Zinc Hex Serrated Flange Nut offers superior corrosion resistance, secure locking features, and a broad size range, making it an ideal component for distributors aiming to supply reliable fastening solutions with enhanced performance and durability.
