Hex Socket Head Bolt
$0.01
- Wide size range from M1.4 to M100 with precise dimensions.
- Multiple thread pitch options for various fastening needs.
- High durability and material strength for demanding applications.
Category: Bolts
Description

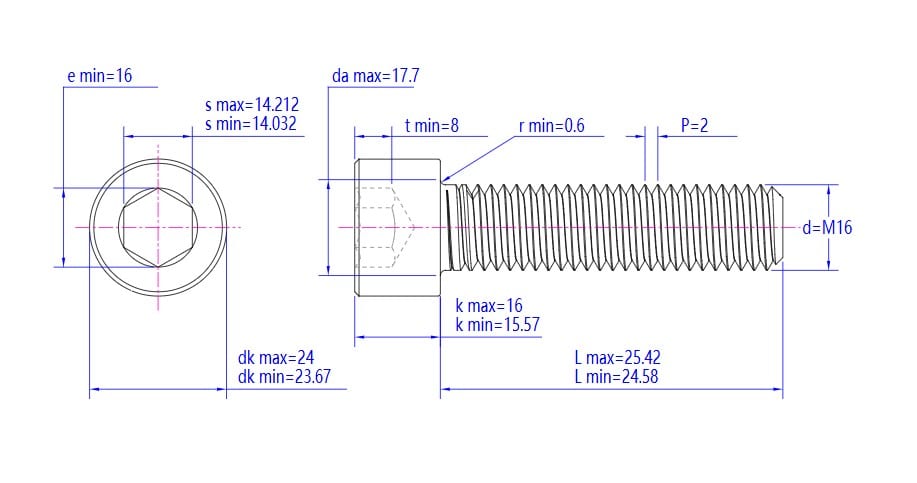

(mm) | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 |
P | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 | 1.5|2|2.5 |
dk max | 2.6 | 3 | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 |
dk min | 2.46 | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 |
da max | 1.8 | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 |
e min | 1.5 | 1.73 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 | 16 | 16 |
k max | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
k min | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 |
r min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 |
s min | 1.32 | 1.52 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 14.032 |
s max | 1.36 | 1.56 | 1.56 | 2.06 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | 14.212 |
t min | 0.6 | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
(mm) | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 |
P | 1.5|2|2.5 | 1.5|2|2.5 | 2|3 | 2|3 | 2|3.5 | 2|3.5 | 3|4 | 3|4.5 | 3|5 | 4|5.5 | 4|6 | 4|6 | 4|6 | 4|6 | 4|6 |
dk max | 30 | 33 | 36 | 40 | 45 | 50 | 54 | 63 | 72 | 84 | 96 | 108 | 120 | 135 | 150 |
dk min | 29.67 | 32.61 | 35.61 | 39.61 | 44.61 | 49.61 | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | 107.46 | 119.46 | 134.37 | 149.37 |
da max | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 45.5 | 52.6 | 63 | 71 | 79 | 87 | 97 | 107 |
e min | 19.44 | 19.44 | 21.73 | 21.73 | 25.15 | 27.43 | 30.85 | 36.57 | 41.13 | 46.83 | 52.53 | 62.81 | 74.21 | 85.61 | 97.04 |
k max | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 |
k min | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 41.38 | 47.38 | 55.38 | 63.26 | 71.26 | 79.26 | 89.13 | 99.13 |
r min | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1.2 | 1.6 | 2 | 2 | 2 | 2 | 2.5 | 2.5 |
s min | 17.05 | 17.05 | 19.065 | 19.065 | 22.065 | 24.065 | 27.065 | 32.08 | 36.08 | 41.08 | 46.08 | 55.1 | 65.1 | 75.1 | 85.12 |
s max | 17.23 | 17.23 | 19.275 | 19.275 | 22.275 | 24.275 | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | 55.4 | 65.4 | 75.4 | 85.47 |
t min | 10 | 11 | 12 | 13.5 | 15.5 | 18 | 19 | 24 | 28 | 34 | 38 | 43 | 48 | 54 | 60 |
Our Hex Socket Head Bolts offer a reliable and versatile fastening solution suitable for various industrial and mechanical applications. Designed for ease of installation and high durability, these bolts are ideal for distributors seeking quality fasteners for their customers.
Key Features:
- Precise dimensions and standard specifications for a wide range of sizes
- Variety of metric sizes from M1.4 to M100 to suit different load requirements
- Multiple thread pitch options to accommodate different fastening needs
- Robust material strength with specific maximum and minimum diameter measurements
- Tight tolerances ensuring consistent performance and compatibility
- Various head and socket dimensions designed for secure fastening
Specifications:
- Sizes range from M1.4 to M100, including detailed parameters such as maximum and minimum diameters (dk max/min, da max), thread lengths (t min), and other critical dimensions (e, k max/min, r min, s min/max)
- Thread pitches vary depending on size, with options like 0.3mm to 9mm
- Diameter and length measurements are precisely engineered—for example, M10 bolts have a maximum diameter of 16mm and minimum of 15.73mm, with length (t min) from 0.6mm to 9mm
- Material and mechanical details specify high standards for strength and durability suitable for demanding applications
Our Hex Socket Head Bolts provide a comprehensive range of sizes and specifications designed for reliability and performance. Perfect for distributors looking to supply high-quality fasteners that meet strict dimensional and strength requirements.
