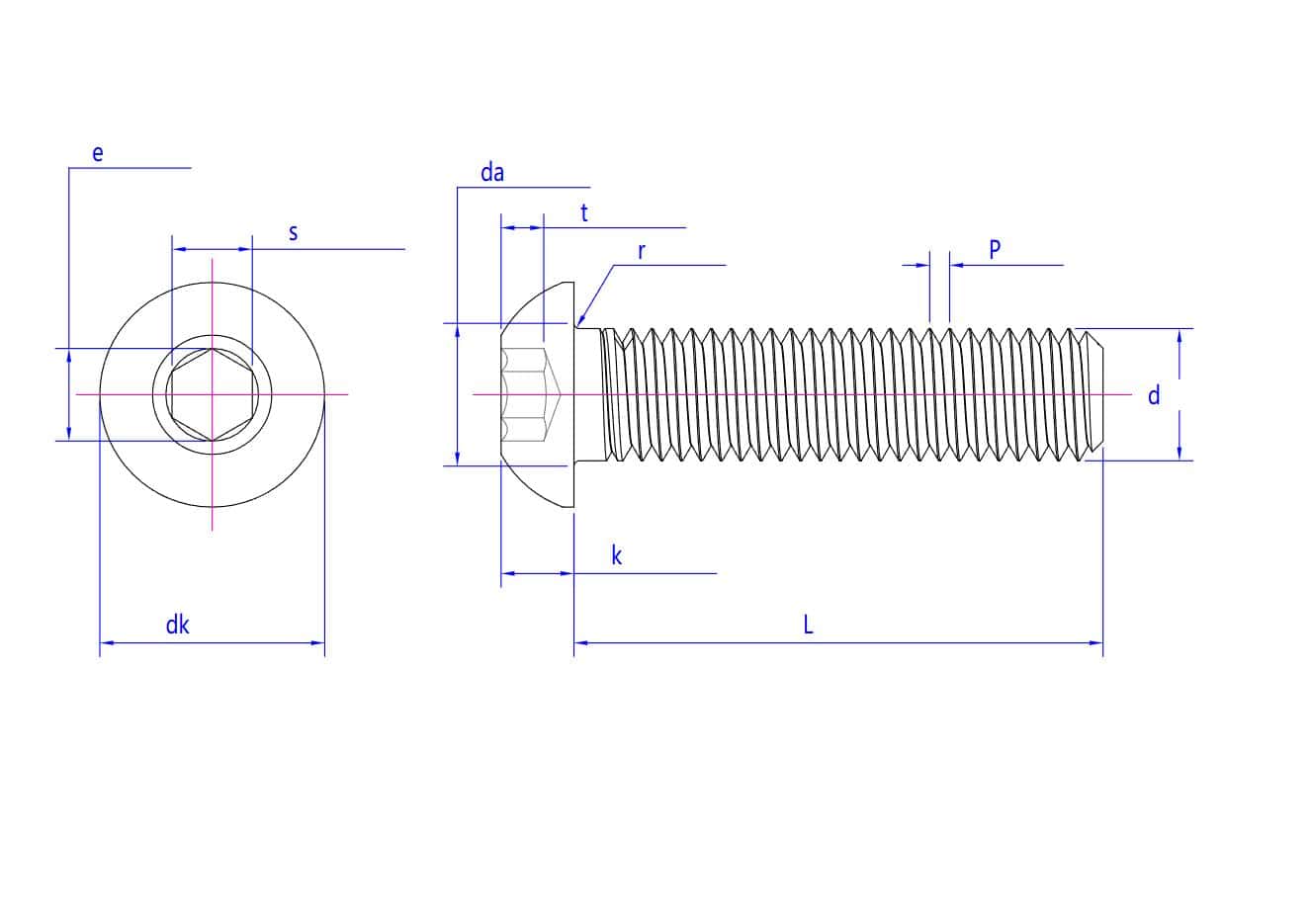

Hex Drive Pan Head Lock Low Profile Screws

(mm)	M3	M4	M5	M6	M8	M10	M12	M16
P	0.5	0.7	0.8	1	1.25	1.5	1.75	2
da max	3.6	4.7	5.7	6.8	9.2	11.2	14.2	18.2
dk max	5.7	7.6	9.5	10.5	14	17.5	21	28
dk min	5.4	7.24	9.14	10.07	13.57	17.07	20.48	27.48
emin	2.303	2.873	3.443	4.583	5.723	6.863	9.149	11.429
k max	1.65	2.2	2.75	3.3	4.4	5.5	6.6	8.8
kmin	1.4	1.95	2.5	3	4.1	5.2	6.24	8.44
r min	0.1	0.2	0.2	0.25	0.4	0.4	0.6	0.6
s max	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175
s min	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025
t min	1.04	1.3	1.56	2.08	2.6	3.12	4.16	5.2

These screws are defined by their self-locking threads, precisely angled to secure the screw in place, eliminating any accidental slippage or movement.

Once positioned, they are designed to stay put, only to be removed by using a screwdriver or similar tool with applied force.

The hex drive allows for more torque to be applied during installation and removal, providing an efficient user experience.

Moreover, the screws’ pan head design allows for better force distribution and the low profile minimizes visibility.
