Hex Head Half Thread Bolt
$0.01
- Durable, high-quality construction for demanding use
- Hex head design offers secure grip and easy tightening
- Widely compatible with standard metric sizes (M1.6–M24)
- Suitable for diverse assembly and maintenance applications
Categories: Bolts, Thread Studs
Description

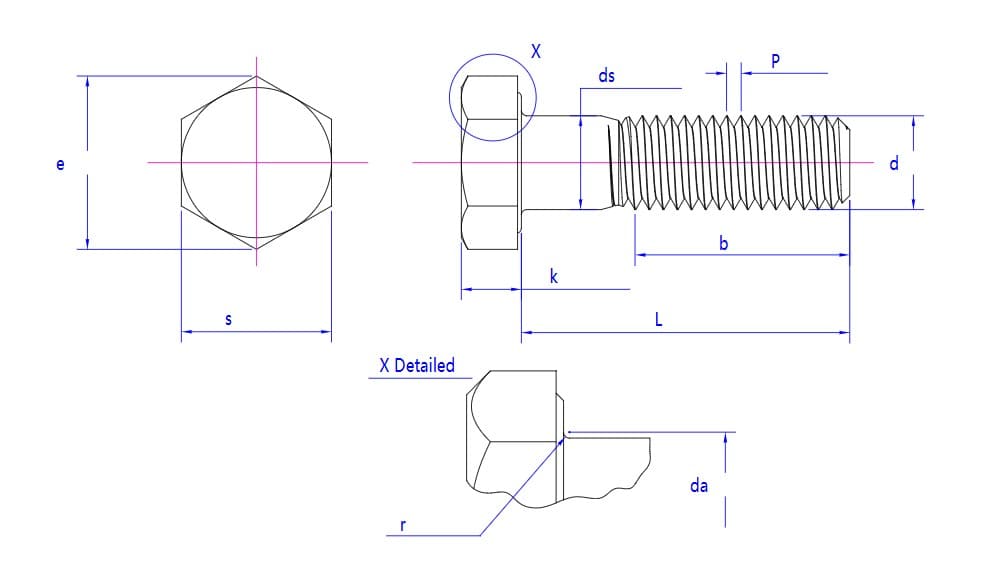

(mm) | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
p | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
da max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 |
ds max | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
ds min | 1.46 | 1.86 | 2.36 | 2.86 | 3.32 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 |
e min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 |
k max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 |
k min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.22 | 9.22 | 10.2 | 11.2 | 12.2 | 13.2 |
r min | 0.1 | 0.1 | 0.1 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1 | 1 |
s max | 3.2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 18 | 20 | 21 | 22 | 24 | 27 | 30 | 34 |
s min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 |
Discover our high-quality Hex Head Half Thread Bolts, designed for versatile fastening solutions with reliable performance and easy installation.
Key Features:
- Hex head design for secure grip and ease of tightening
- Half thread length for targeted fastening applications
- Suitable for various assembly and maintenance tasks
- Durable construction to withstand demanding use
- Compatible with standard metric sizes for widespread application
Specifications:
- Metric sizes ranging from M1.6 to M24
- Pitch (p) varies from 0.35mm to 3mm depending on size
- Max diameter (da max): 1.6mm to 26.4mm
- Max thread diameter (ds max): 1.6mm to 24mm, Min: 1.46mm to 23.67mm
- Minimum engagement length (e min): 3.41mm to 39.98mm
- Maximum head width (k max): 1.225mm to 14.785mm, Min: 0.975mm to 13.2mm
- Minimum radius (r min): 0.1mm to 1mm
- Maximum and minimum flat width (s max/min): 3.2mm to 35.38mm
Our Hex Head Half Thread Bolts provide precise sizing, durability, and ease of installation, making them an ideal choice for distributors seeking reliable fastening solutions across various industries.
