ANSI Bolt, Hexagon Flange Bolt with Serrations

$0.01

  • Hexagon flange design for even load distribution and easy tightening.
  • Serrated flange surface prevents loosening during use.
  • Available in multiple sizes (M6–M16) for versatility.
  • Ensures secure and reliable fastening in industrial applications.
Categories: ,

Description

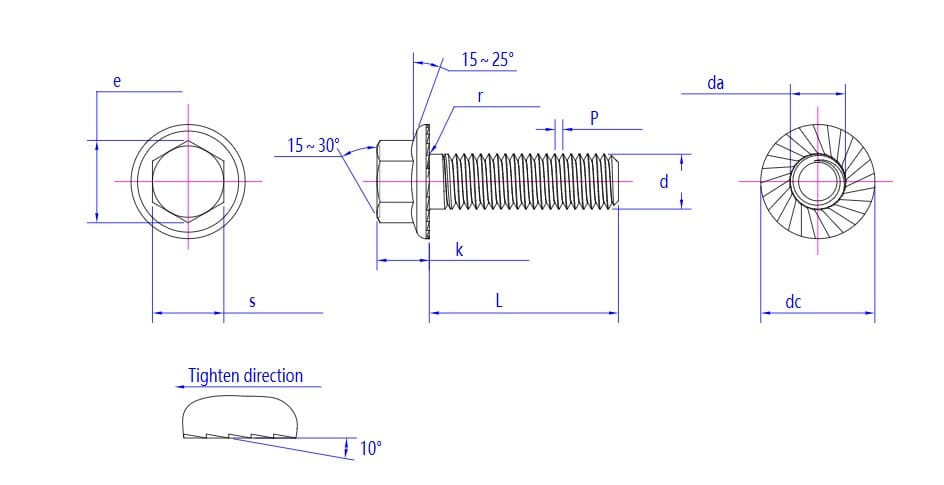

DIN/ANSI Hex Flange Bolt drawing: side, top, section views with labeled dimensions, tighten direction, flange angle.

(mm) M6 M8 M10 M12 M14 M16
P 1 1 1.25 1 1.5 1.5
da max 7.4 10 12.6 16.2 17.7 20.7
dc max 13.6 17 20.8 24.7 28.6 32.8
k max 6.8 8.5 9.7 11.9 12.9 15.1
r 3.4 4.3 4.3 6.4 6.4 6.4
e min 8.56 10.8 14.08 16.32 19.68 22.94
s max 8 10 13 15 18 21
s min 7.64 9.64 12.57 14.57 17.57 20.16



This ANSI Bolt, Hexagon Flange Bolt with Serrations, is designed for reliable fastening in various industrial applications, offering secure grip and enhanced performance.

Key Features:

  • Hexagon flange design for even load distribution and easy tightening
  • Serrated flange surface to prevent loosening during use
  • Suitable for a range of bolt sizes from M6 to M16

Specifications:

  • Thread sizes (mm): M6, M8, M10, M12, M14, M16
  • P (pitch): 1, 1, 1.25, 1, 1.5, 1.5
  • Maximum outer diameter (da max): 7.4mm, 10mm, 12.6mm, 16.2mm, 17.7mm, 20.7mm
  • Maximum diameter of bolt head (dc max): 13.6mm, 17mm, 20.8mm, 24.7mm, 28.6mm, 32.8mm
  • Maximum height (k max): 6.8mm, 8.5mm, 9.7mm, 11.9mm, 12.9mm, 15.1mm
  • Radii (r): 3.4mm, 4.3mm, 4.3mm, 6.4mm, 6.4mm, 6.4mm
  • Minimum effective length (e min): 8.56mm, 10.8mm, 14.08mm, 16.32mm, 19.68mm, 22.94mm
  • Maximum thread engagement length (s max): 8mm, 10mm, 13mm, 15mm, 18mm, 21mm
  • Minimum thread engagement length (s min): 7.64mm, 9.64mm, 12.57mm, 14.57mm, 17.57mm, 20.16mm

This ANSI Hexagon Flange Bolt with Serrations offers robust performance, secure fastening, and versatility across multiple sizes, making it an ideal choice for distributors seeking reliable connectors for industrial applications.
